210 Model Square Metal Roofing Tile: A Durable Fish-Scale Solution for Distinctive Roof Design

Roofing is no longer limited to the simple task of covering a building. Modern roof systems must protect interiors from rain, wind, sunlight, temperature changes, and fire while also contributing to architectural identity. For villas, cultural buildings, theaters, galleries, resorts, and other visually important structures, the roof is often one of the most noticeable design elements. The 210 Model Square Metal Roofing Tile responds to these requirements by combining a decorative fish-scale appearance with the structural and functional benefits of a modern metal roofing system.

Designed as a flat lock metal panel, the 210 Model Square Metal Roofing Tile is formed from durable metallic materials and installed in an overlapping pattern that creates a layered dragon-scale or fish-scale effect. Its compact 210 mm by 210 mm standard format gives designers considerable flexibility when working with curved, irregular, or architecturally complex roof surfaces. Custom sizes are also available, allowing the system to be adapted to different project concepts, roof proportions, and installation requirements.

Unlike conventional large-format roofing sheets, which may appear visually repetitive or difficult to adapt to curved geometry, this square metal tile offers a more refined surface rhythm. The individual panels create a consistent pattern across the roof while preserving the lightweight, corrosion-resistant, and fire-resistant characteristics associated with metal construction. Hidden fasteners or concealed support fixation further improve the visual finish and reduce the risk associated with exposed perforations.

This article examines the construction, materials, appearance, performance, manufacturing strengths, application possibilities, installation principles, maintenance considerations, and competitive advantages of the 210 Model Square Metal Roofing Tile.

Product Overview

The 210 Model Square Metal Roofing Tile belongs to the flat lock metal panel category. It is a small-format roofing element designed to be installed in an interlocking or overlapping arrangement. Once installed, the individual squares produce a fish-scale or dragon-scale surface that gives the roof a strong sense of depth, movement, and layering.

The product is available in a standard size of 210 mm by 210 mm, with customizable dimensions available for projects requiring a different visual scale or technical configuration. The compact format supports detailed roof layouts and helps installers follow curved edges, transitions, domes, fan-shaped surfaces, and other irregular geometries more effectively than many rigid, large-panel systems.

Available material options include aluminum alloy, titanium-zinc alloy, and copper. These materials allow architects and project owners to select a solution according to appearance, corrosion resistance, expected service environment, budget, and long-term design goals. Thickness options range from 0.5 mm to 1.2 mm, providing flexibility for different structural and performance requirements.

Parameter	Specification
Product Name	210 Model Square Metal Roofing Tile
Product Category	Flat Lock Metal Panel
Standard Product Size	210 mm × 210 mm
Available Size	Customizable sizes available
Available Thickness	0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm
Material Options	Aluminum alloy, titanium-zinc alloy, and copper
Surface Effect	Fish-scale, dragon-scale, or layered square-tile appearance
Fastening Method	Hidden fasteners or concealed support fixation
Typical Applications	Villas, art galleries, theaters, amusement parks, cultural buildings, and specialty architecture

The combination of small-format geometry, concealed fixing, material choice, and custom production makes this product suitable for both decorative roofing and technically demanding architectural envelopes.

210 Model Square Metal Roofing Tile

Distinctive Fish-Scale and Dragon-Scale Appearance

The most recognizable feature of the 210 Model Square Metal Roofing Tile is its surface effect. After installation, the overlapping squares resemble fish scales or traditional dragon scales. This creates a roof texture that is more expressive than a conventional flat sheet and more contemporary than many traditional ceramic or concrete tile arrangements.

The repeated pattern creates visual continuity across the roof while allowing light and shadow to interact with the surface. During different times of day, the overlapping edges may produce changing highlights and shadow lines. This quality can be especially valuable on buildings intended to attract attention, such as art galleries, performance venues, resorts, visitor centers, and themed entertainment facilities.

The design also provides a connection between traditional architectural symbolism and modern construction technology. Dragon-scale imagery has long been associated with strength, protection, prestige, and cultural identity in many architectural traditions. By reproducing this type of visual language through formed metal panels, the product can support historical, cultural, or decorative design concepts without requiring the weight and fragility of traditional hand-made roof components.

Color selection can further influence the final appearance. Rich colors can emphasize the scale pattern, while metallic finishes can highlight the natural character of aluminum alloy, titanium-zinc alloy, or copper. Darker colors may create a calm and monumental appearance, while brighter or warmer colors can produce a more decorative and expressive roof surface.

Because the tiles are relatively small, the scale of the pattern can be coordinated with the size and viewing distance of the building. A large public building may use the standard 210 mm format to create a bold, readable texture. A smaller villa or pavilion may require a customized dimension to achieve the desired relationship between the roof pattern and the building facade.

Advantages of the Flat Lock Metal Panel Structure

Efficient Use of Small-Format Panels

Small-format panels offer a practical advantage when the roof includes curves, angles, valleys, transitions, or irregular boundaries. Large roofing sheets are efficient on simple slopes, but they may require extensive cutting and adjustment when the building geometry changes. The 210 Model Square Metal Roofing Tile uses many compact elements, allowing the installer to follow the roof form with greater control.

This flexibility is particularly useful for domes, fan-shaped roofs, arc-shaped structures, towers, decorative canopies, and roofs with changing slopes. Each panel can be positioned as part of a coordinated layout, helping the finished surface maintain a regular visual pattern even when the supporting geometry is complex.

Layered Water-Shedding Surface

The overlapping arrangement of the panels creates a layered surface that directs water toward the drainage path. Correct detailing, substrate preparation, panel alignment, and flashing remain essential, but the tile arrangement can provide a practical method of managing water movement on the roof.

A properly designed metal roofing assembly must account for rainfall intensity, roof slope, wind exposure, drainage capacity, penetrations, edge conditions, and connection details. The 210 Model Square Metal Roofing Tile can be integrated into such an assembly with concealed fixing and suitable waterproofing layers. It should be treated as part of a complete roof system rather than as an isolated decorative covering.

Clean Surface Without Exposed Nail Holes

One of the product’s important functional features is the use of hidden fasteners or concealed support fixation. Because the main attachment points are not prominently visible on the surface, the roof has a cleaner appearance with fewer visible interruptions.

Reducing exposed perforations can also help address a common concern in metal roofing: the possibility of water entering through improperly sealed screw holes. Concealed fixing does not eliminate the need for professional detailing, but it can reduce the number of exposed points that require visible sealing and long-term inspection.

The concealed appearance is particularly valuable on roofs viewed from nearby balconies, upper floors, roads, courtyards, or public spaces. It enables the fish-scale pattern to remain the dominant visual feature instead of being interrupted by rows of visible fasteners.

Material Options and Their Design Value

Aluminum Alloy

Aluminum alloy is a lightweight material that offers useful corrosion resistance and ease of handling. Its low weight can help reduce the load imposed on the supporting roof structure compared with heavier traditional roofing products. This characteristic is beneficial for renovation projects, decorative roof additions, and buildings where structural loading must be carefully controlled.

Aluminum alloy can also be formed into detailed shapes and produced in a variety of colors and finishes. It is suitable for projects seeking a balance between visual flexibility, low weight, and long-term weather resistance. When used with appropriate coatings and detailing, aluminum alloy can support a durable exterior roofing system in many environments.

Titanium-Zinc Alloy

Titanium-zinc alloy is recognized for its architectural appearance and suitability for long-lasting building envelopes. It can develop a distinctive surface character over time, depending on the alloy, finish, environmental conditions, and project specifications. Its refined appearance makes it suitable for premium residential buildings, cultural projects, institutional structures, and design-focused developments.

The material can provide an elegant metallic finish while supporting the formed geometry required by the fish-scale tile concept. As with all metals, compatibility with adjacent materials, drainage details, movement allowances, and installation practices should be reviewed during design development.

Copper

Copper offers a distinctive appearance that can change naturally as it reacts with the environment. Its warm metallic color and evolving surface character can create a strong architectural identity. Copper is often selected when the roof is intended to become a prominent design feature or when a traditional and prestigious material expression is desired.

Because copper can interact with other metals through galvanic effects, material compatibility must be considered carefully. Proper separation, drainage design, fastener selection, and accessory coordination are necessary to achieve a reliable installation.

Thickness Selection for Different Project Requirements

The product is available in thicknesses from 0.5 mm to 1.2 mm. The appropriate thickness depends on the selected material, roof geometry, support system, wind conditions, handling requirements, span arrangement, and project specifications.

Thinner panels may be suitable for lightweight decorative applications when the supporting assembly and fixing method provide adequate stability. They can reduce material consumption and handling weight. Thicker panels may provide greater rigidity and resistance to deformation during transportation, installation, and service, particularly in exposed or demanding applications.

Thickness should not be selected solely according to preference. Engineers and project designers should evaluate local wind loads, snow loads where applicable, expected maintenance traffic, roof pitch, substrate type, fastener spacing, panel dimensions, and thermal movement. The selected specification should be confirmed through project calculations and technical documentation.

The availability of several thickness options is an advantage over systems that offer only one standard gauge. It allows the roof assembly to be better matched to the project’s structural and environmental conditions instead of forcing every building to use the same material thickness.

Performance Benefits Compared with Conventional Roofing Choices

Lightweight Construction

Metal roofing tiles generally provide a favorable strength-to-weight ratio. The 210 Model Square Metal Roofing Tile can deliver a substantial architectural surface without the mass associated with many concrete, clay, or stone roofing systems. Lower dead load may simplify structural planning and can be especially helpful when adding a new roof system to an existing building.

A lighter roof may also support more efficient transportation, lifting, and installation. Nevertheless, the complete assembly still includes underlayment, insulation, support members, flashings, drainage components, and accessories. The total system weight should therefore be confirmed during design.

Water Resistance

Metal itself does not absorb water in the same way as porous roofing materials. When shaped, overlapped, and detailed correctly, the panels can form a durable weather-resistant covering. The concealed fastening arrangement helps maintain a cleaner surface and can reduce the number of visible penetrations.

Water resistance depends on more than the panel material. Correct roof pitch, underlayment, seam configuration, edge treatment, valley detailing, ridge construction, penetration flashing, and drainage design all influence performance. Professional installation is essential for achieving the intended result.

Fire Resistance

Metal is a non-combustible material category commonly selected for buildings where fire performance is an important consideration. The 210 Model Square Metal Roofing Tile can contribute to a roof assembly designed for improved fire resistance. Actual fire classification depends on the entire roof system, including insulation, membranes, coatings, substrates, and supporting elements.

For projects subject to fire codes, the complete assembly should be evaluated according to the requirements of the local authority and the applicable testing standards. The choice of metal tile is one component of an integrated fire-safety strategy.

Corrosion Resistance and Service Life

Aluminum alloy, titanium-zinc alloy, and copper all offer long-term architectural value when appropriately selected and installed. Their resistance to environmental exposure can support a long service life, especially when the roof is maintained and incompatible materials are avoided.

Corrosion performance depends on the site environment. Coastal salt exposure, industrial pollution, high humidity, standing water, chemical emissions, and contact with dissimilar metals may affect the choice of material and finish. A project-specific review can help ensure that the selected metal is suitable for the local conditions.

Plasticity for Complex Roof Forms

The product’s high plasticity and small panel format allow it to be considered for curved, fan-shaped, domed, arched, and other irregular roof forms. This is a major design advantage over many conventional products that perform best only on simple, straight slopes.

Complex geometry requires accurate drawings and careful planning. The manufacturer’s ability to support drawing refinement and technical consultation can be valuable when converting a conceptual roof shape into a buildable panel layout. Detailed coordination can reduce material waste, improve alignment, and clarify the treatment of corners, edges, ridges, valleys, and penetrations.

Manufacturing Capabilities and Quality-Oriented Production

The quality of a decorative metal roof depends not only on the selected alloy but also on the precision of forming, cutting, inspection, packaging, and technical coordination. A small panel system requires consistency because many individual elements must work together to create a continuous visual pattern. Variations in size, angle, edge shape, or surface treatment can become noticeable across a large roof.

The manufacturer behind the 210 Model Square Metal Roofing Tile combines research and development, manufacturing, processing, sales, installation, and after-sales support. Its production area covers approximately 10,000 square meters, with a monthly production capacity of more than 100,000 units and a workforce of more than 200 experienced employees.

This scale supports the production of both standard and customized roofing components. It also provides the capacity needed for projects that require consistent quantities, coordinated delivery schedules, and repeatable panel quality. A production organization with dedicated technical and design personnel can help connect the architectural concept with the manufacturing process.

Design and Drawing Refinement

Complex roofs often require more than a product catalog and a basic quotation. Panel layout drawings, edge details, installation sequences, material transitions, and accessory coordination must be resolved before fabrication. The company provides drawing refinement and consultation services to help project teams develop practical solutions.

This capability can be particularly important for fish-scale roofs because the pattern must remain visually coordinated around curves and changes in direction. A well-prepared layout can determine how the pattern starts at the eaves, continues across the main field, meets the ridge, and transitions around openings or roof-mounted equipment.

Integrated Production and Processing

Integrated manufacturing and processing can improve communication between technical staff, production personnel, and installation teams. When design adjustments are required, an integrated organization may respond more efficiently than a supply chain in which design, fabrication, and site work are handled by unrelated parties.

Production planning should include material selection, thickness confirmation, panel dimensions, finish requirements, accessory compatibility, packaging, labeling, and delivery sequencing. These details are especially important when a project uses several roof slopes or custom dimensions.

Installation and Construction Support

The company also provides construction and installation services. This can help project owners and contractors obtain a more complete solution, particularly where the roof geometry is complex or the local installation team has limited experience with concealed metal tile systems.

Professional installation support can address substrate preparation, underlayment placement, concealed fixing, panel alignment, flashings, drainage, movement allowances, and finishing details. It can also help ensure that the intended fish-scale appearance is achieved consistently across the building.

International Supply Experience

The company exports to more than 100 countries and works with developers, architects, engineering companies, contractors, and material distributors. International project experience can support the coordination of different design practices, climate conditions, shipping requirements, and construction expectations.

Export-oriented production also requires attention to packaging and logistics. Small metal panels must be protected from scratching, bending, contamination, and moisture accumulation during transport. Proper packaging and project labeling help installers identify materials and maintain the intended sequence of installation.

How the Product Compares with Other Roofing Systems

The 210 Model Square Metal Roofing Tile occupies a distinctive position between decorative traditional tiles and modern sheet-based roofing systems. Its advantages are most apparent where appearance, lightweight construction, curved geometry, and concealed fixing are all important.

Compared with Large Standing Seam Panels

Standing seam systems are highly effective for long, continuous roof planes and modern architectural designs. They can provide excellent weather performance when properly installed. However, their long panel format may be less suitable for projects seeking a small-scale decorative pattern or highly articulated fish-scale appearance.

The 210 Model Square Metal Roofing Tile offers a different visual language. Its repeated squares create a textured surface, while its compact format can adapt more easily to certain curves and decorative transitions. The choice between the two systems should be based on roof geometry, architectural intent, drainage design, and project performance requirements.

Compared with Ceramic or Concrete Tiles

Ceramic and concrete tiles can provide traditional character, but they are generally heavier and may be more vulnerable to cracking, breakage, or handling damage. Their weight can increase structural demands, particularly on renovation projects or buildings with complex roof forms.

The metal tile system offers a lightweight alternative with greater flexibility in material thickness, panel size, and concealed fixing. It can reproduce a layered decorative effect while reducing the mass associated with many traditional tile systems.

Compared with Exposed-Fastener Metal Sheets

Exposed-fastener sheets can be economical and efficient for agricultural, industrial, and utility structures. However, visible screws and washers may interrupt the roof appearance and create points requiring periodic inspection. The 210 Model Square Metal Roofing Tile uses concealed fasteners or support fixation to provide a more refined architectural finish.

For public-facing buildings and premium residential projects, the cleaner surface can justify selecting a concealed system even when a simpler exposed-fastener sheet could satisfy basic weatherproofing requirements.

Compared with Synthetic Decorative Tiles

Synthetic materials can imitate traditional patterns and may provide low weight. However, metal offers a combination of rigidity, fire resistance, material authenticity, and long-term architectural value that may be preferred for high-end buildings. The choice should consider ultraviolet exposure, temperature changes, fire requirements, environmental conditions, and expected service life.

Recommended Architectural Applications

Villa Roofs

For villas, the roof often contributes strongly to the building’s character. The fish-scale pattern can make a private residence appear distinctive without requiring complex ornamental structures. The small panel format can follow dormers, curved eaves, turrets, entrance canopies, and other residential features.

Material selection can be coordinated with stone, glass, wood, plaster, brick, or metal facade elements. Aluminum alloy may be selected for a lightweight contemporary appearance, while copper or titanium-zinc alloy may be used for a more premium or traditional expression.

Art Galleries and Cultural Buildings

Art galleries and cultural facilities often require architecture that communicates identity before visitors enter the building. A patterned metal roof can become part of the building’s visual narrative. The dragon-scale effect may reference regional culture, history, craft traditions, or symbolic themes.

The concealed fastening system helps the roof maintain a visually uninterrupted composition, which is useful when the building is viewed from plazas, gardens, pedestrian areas, or adjacent public spaces.

Theaters and Performance Venues

Theaters frequently use expressive architectural forms, including curved roofs, sweeping canopies, and dramatic entrances. The product’s adaptability to arcs, fans, and domes allows it to be considered for these applications. A coordinated roof pattern can reinforce the building’s identity while providing a durable weather envelope.

Amusement Parks and Themed Developments

Amusement parks and themed developments benefit from recognizable visual motifs. Fish-scale or dragon-scale roofing can support fantasy, historical, cultural, or story-based environments. The material’s ability to be produced in rich colors and customized sizes gives designers additional freedom when developing themed structures.

Specialty Commercial and Hospitality Projects

Hotels, resorts, restaurants, visitor centers, and branded commercial buildings may use decorative roofing to create a memorable first impression. The roof can serve as a landmark element and help distinguish one property from neighboring structures.

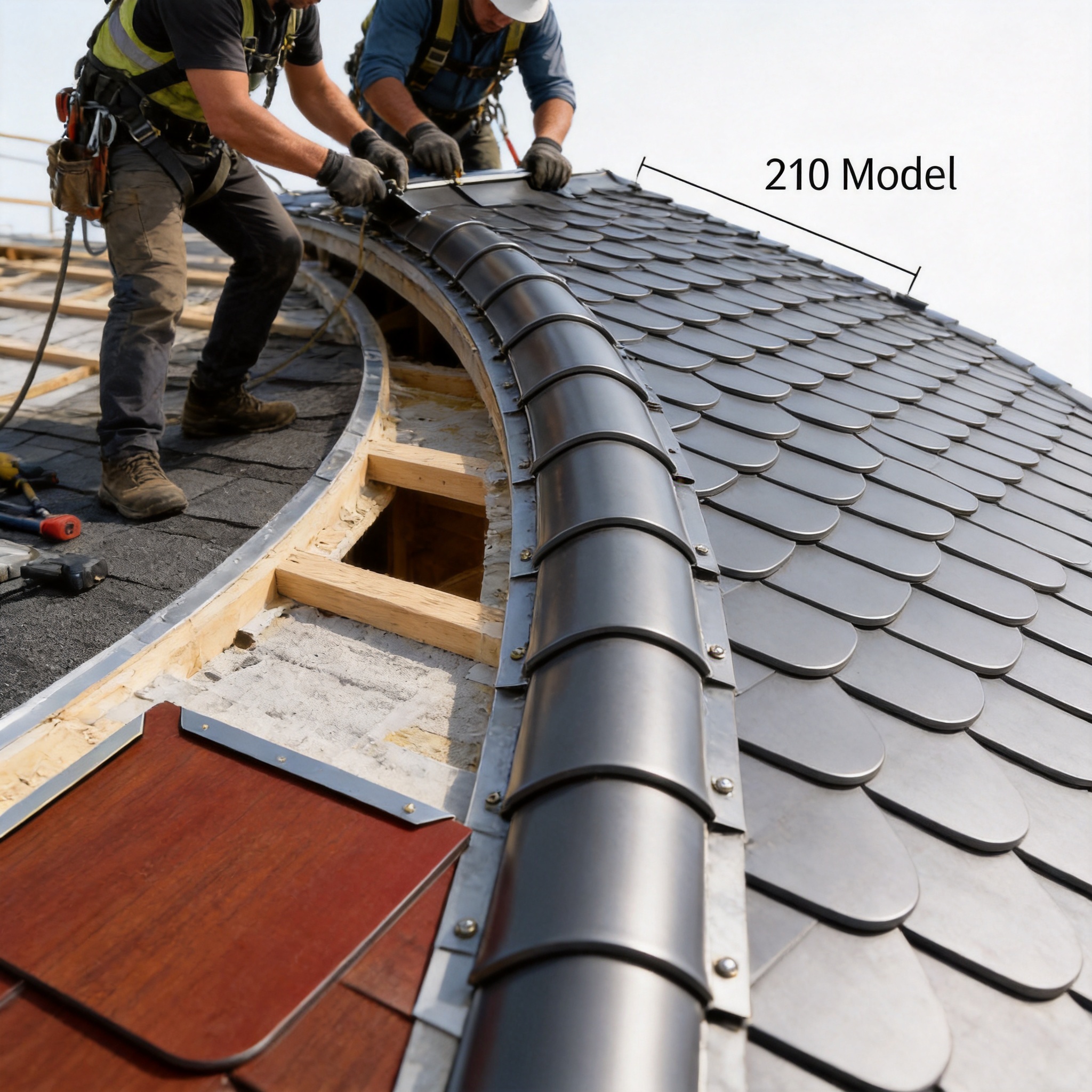

Installation Principles

The 210 Model Square Metal Roofing Tile should be installed as part of a properly engineered roof assembly. The following principles provide general guidance, but the final method must follow the approved project drawings, local building requirements, material specifications, and manufacturer instructions.

Substrate Preparation

The supporting substrate must be sound, level, correctly aligned, and capable of receiving the concealed support or fastening system. Uneven supports can distort the pattern and create stresses in the panels. Before installation, the contractor should inspect the roof deck, structural members, drainage falls, openings, and edge conditions.

Underlayment and Drainage

A suitable underlayment or waterproofing layer may be required beneath the metal panels. The selected layer should be compatible with the metal, roof slope, climate, and project design. Valleys, eaves, ridges, penetrations, and changes in direction require carefully coordinated flashing and drainage details.

Pattern Alignment

Pattern alignment is critical to the visual quality of a fish-scale roof. The installation team should establish control lines before fixing the panels. The starting point, horizontal spacing, vertical overlap, eave line, ridge line, and transitions around openings should be reviewed in advance.

A well-coordinated installation sequence helps avoid cumulative deviations. Small errors repeated across many rows may become highly visible, particularly on large uninterrupted roof planes.

Concealed Fixing

Hidden fasteners or support fixation must be installed according to the approved connection details. Fasteners should be suitable for the selected metal and environmental conditions. The system should allow for thermal movement where required and should not create unnecessary stress or distortion in the panels.

Edges, Ridges, and Penetrations

Decorative roofing systems require carefully designed edge treatments. Eaves, verges, ridges, hips, valleys, skylights, vents, chimneys, and service penetrations should be detailed so that water is directed away from vulnerable joints. These areas should also preserve the visual continuity of the scale pattern as far as practical.

Custom accessories may be required for complex projects. Early coordination between the architect, roofing designer, manufacturer, and installer can reduce site modifications and improve the final finish.

Quality Control from Factory to Site

Quality control should begin with the incoming material and continue through forming, finishing, packaging, delivery, and installation. The metallic substrate should be checked for conformity with the specified alloy and thickness. Panel dimensions, edge conditions, surface finish, and color consistency should be reviewed during production.

For customized projects, sample panels or mock-ups can be useful. A sample allows the design team to assess the scale effect, color, overlap, surface reflection, accessory details, and relationship with adjacent facade materials before full production begins.

Production records and batch identification can help trace materials during delivery and installation. Proper packaging should prevent abrasion and deformation. Panels should be stored in a dry, ventilated, and protected area, with care taken to avoid trapped moisture between stacked components.

On site, installers should inspect panels before use and separate any damaged components. Cutting, drilling, or modification should be carried out with appropriate tools and methods to avoid damaging protective finishes or creating corrosion-prone edges.

Maintenance and Long-Term Care

Metal roofing generally requires less routine maintenance than many fragile roofing materials, but it is not maintenance-free. Regular inspection helps identify blocked drainage, accumulated debris, loose accessories, sealant deterioration, scratches, and incompatible contact with other materials.

Roof gutters, valleys, outlets, and concealed drainage paths should be kept clear. Leaves, dirt, and organic matter can retain moisture and place unnecessary stress on roof details. After severe weather, the roof should be checked for displaced panels, impact damage, or problems at edges and penetrations.

Cleaning methods should be selected according to the metal and finish. Aggressive chemicals, abrasive tools, and incompatible cleaning agents may damage coatings or accelerate surface deterioration. Maintenance personnel should follow the recommended cleaning and inspection procedures for the selected material.

Access to the roof should be controlled. If maintenance workers must walk on the roof, designated access routes or protective measures should be considered. The small panels should not be subjected to unplanned concentrated loads or improper foot traffic.

Sustainability and Lifecycle Considerations

Durable roofing can support sustainability by reducing the need for frequent replacement and minimizing material waste over the building’s service life. Aluminum, titanium-zinc alloy, and copper are durable architectural metals that may be suitable for long-term building envelope applications when properly specified and maintained.

The lightweight nature of the product can also reduce transportation and lifting demands compared with heavier roofing materials. Its adaptability to complex forms may reduce the need for visually disruptive secondary coverings or excessive structural modifications.

Sustainability should be evaluated across the entire lifecycle. Important factors include raw material sourcing, manufacturing energy, coating selection, transportation distance, installation waste, service life, maintenance requirements, and end-of-life recovery. Metal roofing materials can offer recycling value, although the actual environmental performance depends on the selected material and the project’s supply chain.

Why Choose This Product for a Premium Roof Project?

The 210 Model Square Metal Roofing Tile is especially suitable when the roof must perform as both a protective enclosure and a visible architectural feature. Its principal strengths can be summarized as follows:

First, it offers a distinctive fish-scale or dragon-scale appearance that can create a memorable building identity. Second, its compact format supports complex roof geometry and detailed transitions. Third, the use of aluminum alloy, titanium-zinc alloy, or copper provides material flexibility for different aesthetic and environmental requirements. Fourth, concealed fastening improves the visual quality and reduces the emphasis on exposed perforations. Fifth, the lightweight metal construction can reduce structural and handling demands compared with many traditional tile products.

In addition, the manufacturer provides more than product supply. Drawing refinement, consultation, processing, installation, construction support, and after-sales maintenance can help project teams move from concept to completed roof with fewer coordination gaps.

The company’s production area, workforce, monthly capacity, international supply experience, and integrated technical services provide a strong foundation for customized architectural roofing projects. These capabilities are particularly relevant when a project includes special dimensions, multiple material types, complex curves, or strict appearance requirements.

Project Planning Checklist

Before ordering the 210 Model Square Metal Roofing Tile, the project team should confirm the roof geometry, total area, roof slope, material type, panel thickness, color or finish, substrate, underlayment, drainage system, fixing method, and accessory requirements.

The team should also review local climate conditions, wind exposure, snow loads where applicable, coastal or industrial corrosion risks, fire regulations, thermal movement, maintenance access, and the compatibility of adjacent materials.

For complex roofs, accurate architectural and fabrication drawings should be prepared before production. A physical sample or mock-up can help verify the appearance. The installation contractor should be familiar with concealed metal panel systems and should understand the importance of pattern control.

Delivery scheduling should be coordinated with site readiness. Panels should not arrive before the storage area and supporting structure are prepared. Clear labeling can help installers identify materials for specific roof zones and avoid mixing different batches or finishes.

Questions and Answers

What is the 210 Model Square Metal Roofing Tile?

It is a small-format flat lock metal panel designed to create a fish-scale or dragon-scale roof appearance. The standard panel size is 210 mm by 210 mm, and customized sizes are available.

What materials can be used to produce the tile?

The available material options include aluminum alloy, titanium-zinc alloy, and copper. The appropriate material depends on the project’s appearance, corrosion environment, performance requirements, and budget.

What thicknesses are available?

Available thicknesses include 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm. Final selection should be based on engineering requirements and the site environment.

Can the product be used on curved roofs?

Yes. The compact panel format and metal plasticity make it suitable for many curved and irregular roof forms, including arcs, fans, domes, and other customized geometries. Detailed project drawings are recommended.

Are the fasteners visible after installation?

The product uses hidden fasteners or concealed support fixation, so the main fixing points are not exposed across the visible panel surface. Edge and accessory details should still be designed and installed carefully.

Is the roof resistant to water?

The metal panels are designed to form a weather-resistant roof covering when correctly overlapped and installed as part of a complete roof assembly. Waterproofing also depends on slope, underlayment, flashings, drainage, penetrations, and workmanship.

Is the product fire-resistant?

Metal is generally a non-combustible material category, but the fire performance of a roof must be evaluated as a complete assembly. Local fire regulations and applicable testing requirements should be followed.

Where is this roofing tile commonly used?

Typical applications include villas, art galleries, theaters, amusement parks, cultural buildings, resorts, specialty commercial projects, and other structures where both appearance and weather protection are important.

Can the manufacturer provide customized sizes?

Yes. The standard size is 210 mm by 210 mm, but customized sizes can be discussed according to the project’s design and technical requirements.

Does the supplier provide installation support?

The company offers construction and installation services, as well as drawing refinement, consultation, material supply, and after-sales maintenance support.

How should the material be selected for a coastal location?

Coastal projects require special attention to salt exposure, drainage, fastener compatibility, protective finishes, and maintenance. The selected metal and complete roof assembly should be reviewed for the specific environmental conditions.

How does this product differ from conventional large metal sheets?

The 210 Model Square Metal Roofing Tile uses smaller overlapping panels to create a decorative fish-scale pattern and to improve adaptability to certain complex roof forms. Large metal sheets may be more efficient for simple roof planes but generally create a different visual effect.

Does the roof require maintenance?

Routine inspection is recommended. Gutters, valleys, outlets, edges, penetrations, and accessories should be checked periodically. Debris should be removed, and any damage or abnormal movement should be addressed promptly.

Conclusion

The 210 Model Square Metal Roofing Tile offers a compelling combination of decorative character, lightweight construction, material flexibility, concealed fixing, and adaptability to complex roof geometry. Its fish-scale or dragon-scale appearance can transform the roof into a defining architectural element while retaining the functional advantages of a modern metal roofing system.

With standard 210 mm by 210 mm panels, customizable dimensions, thickness options from 0.5 mm to 1.2 mm, and material choices including aluminum alloy, titanium-zinc alloy, and copper, the system can be configured for a wide range of premium architectural applications. Its benefits are particularly apparent on villas, cultural facilities, theaters, amusement parks, galleries, resorts, and other buildings where appearance and long-term performance must work together.

The manufacturer strengthens the product offering through integrated research and development, production, processing, drawing refinement, installation, construction support, and after-sales service. A 10,000-square-meter production area, more than 200 experienced workers, monthly capacity exceeding 100,000 units, and export experience in more than 100 countries provide a substantial platform for standard and customized projects.

For a successful result, the product should be specified as part of a complete engineered roof assembly. Careful attention should be given to material compatibility, thickness selection, substrate preparation, drainage, pattern alignment, concealed fixing, edge details, and long-term maintenance. When these elements are coordinated properly, the 210 Model Square Metal Roofing Tile can provide a durable, expressive, and technically capable roof solution.

References

1. Architectural Metal Roofing Design and Installation Principles, technical reference material.

2. Metal Building Envelope Systems: Materials, Detailing, and Performance, professional construction reference.

3. Aluminum Alloy Roofing Applications and Corrosion Considerations, materials engineering reference.

4. Titanium-Zinc and Copper in Architectural Roofing, architectural materials reference.

5. General Principles of Waterproofing, Flashing, and Drainage for Metal Roof Assemblies, building envelope reference.

6. Guidance on Fire Performance, Thermal Movement, and Maintenance of Metal Roofing Systems, construction standards reference.

7. Manufacturer-provided specifications for the 210 Model Square Metal Roofing Tile, including dimensions, materials, thickness options, applications, and concealed fastening features.

8. Manufacturer-provided company information concerning production capacity, technical services, installation support, export experience, and metal roofing system development.

Product: 210 Model Square Metal Roofing Tile
