720 Model Wave Metal Roofing Tiles: A Lightweight, Durable Solution for Traditional-Style Architecture

720 Model Wave metal roofing tiles

The 720 model wave metal roofing tiles are designed for projects that require the visual character of traditional curved roofing together with the structural and practical benefits of modern metal roofing. This integrated roller-pressed roofing system combines the appearance of traditional chimney tiles and flat tiles in one coordinated product. Its rounded profile, clear eave lines, concealed fastening method, and matching accessories create a complete roofscape for buildings with an antique, Chinese-style, or heritage-inspired appearance.

Unlike ordinary flat metal sheets, exposed-fastener corrugated panels, or conventional clay tile assemblies, the 720 model is developed as a coordinated roofing system. The roof panel, ridge tile, drip eave, roof cap, upturned corner, doufeng board, and dragon-head components can be matched in one visual language. This helps architects, contractors, and building owners achieve a unified appearance while simplifying material selection and installation planning.

The product is suitable for villas, temples, ancestral halls, pavilions, Chinese-style courtyards, cultural buildings, traditional-style commercial districts, and renovation projects involving older structures. With a standard effective width of 720 mm, customizable length, and available thicknesses from 0.5 mm to 1.2 mm, the system can be adapted to different roof dimensions, structural requirements, and project budgets.

1. Understanding the 720 Model Wave Metal Roofing System

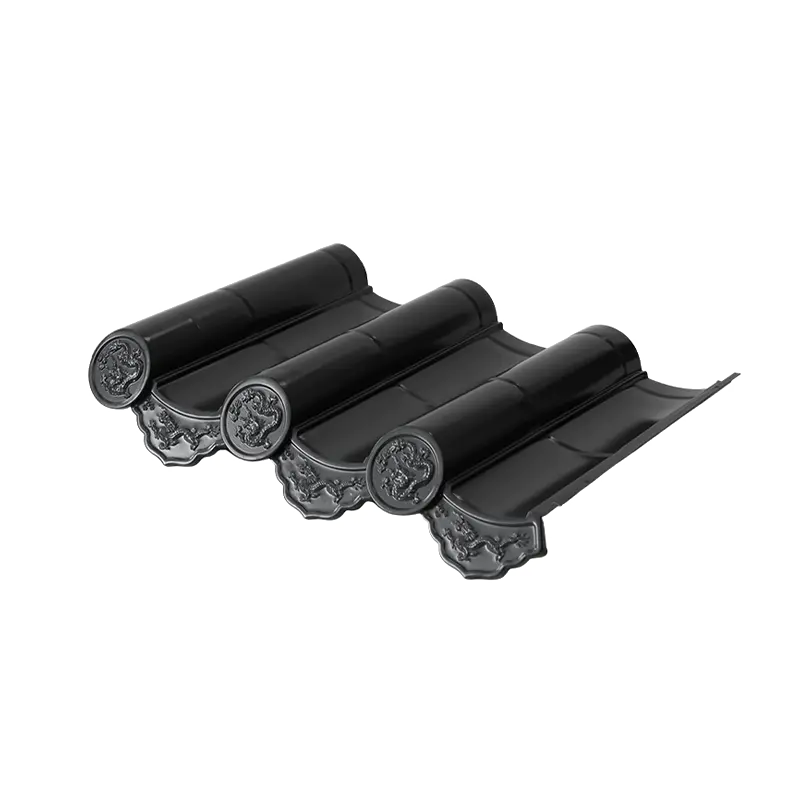

The 720 model wave metal roofing tile is an integrated, roller-pressed metal roofing product. During production, the metal substrate passes through forming rollers that shape it into a consistent wave profile. This controlled process produces repeated curves and interlocking or overlapping edges that contribute to the appearance, alignment, and weather resistance of the finished roof.

The design draws inspiration from traditional roof forms. Conventional Chinese-style roofs often use separate curved tiles, flat tiles, ridge pieces, ornamental end components, and manually arranged accessories. The 720 model reproduces the visual rhythm of these elements while reducing the number of individual pieces required for the main roof surface.

This integrated approach is important because traditional tile roofs can involve considerable material weight, complicated transportation, intensive installation, and frequent alignment work. The wave metal roofing system offers a lighter alternative while maintaining a three-dimensional roof profile and a strong sense of architectural character.

The product is not simply a decorative metal sheet. It is intended to function as a complete roof covering system when properly designed and installed. Its performance depends on appropriate substrate preparation, roof slope, drainage planning, fastening, flashing, overlap treatment, and the correct use of compatible accessories.

1.1 A combination of traditional appearance and modern performance

Traditional architecture places considerable emphasis on roof shape. Curved roof surfaces, projecting eaves, decorative corners, and prominent ridge lines can determine the character of an entire building. However, traditional clay or ceramic roof systems may be heavy and labor-intensive. They may also require strong supporting structures and careful maintenance.

The 720 model wave metal roofing tile addresses this challenge by using metal as the primary roofing material. The product can reproduce the visual fullness of a traditional tiled roof while offering a much lower roof-covering weight. According to the supplied product data, the weight is approximately 3 to 6 kilograms per square meter, which is about one-eighth to one-tenth that of traditional clay tile roofs.

This weight reduction can be especially valuable for lightweight steel buildings, timber structures, extensions, renovation projects, and buildings where the existing roof structure has limited reserve capacity. Lower dead load can simplify structural design and may reduce the need for reinforcement, although a qualified structural professional should always verify the suitability of the roof assembly.

1.2 A system rather than an isolated panel

One of the main distinctions of the 720 model is that the roof covering can be coordinated with a range of shaped accessories. Ridge tiles complete the roof peak, drip eaves guide water away from the fascia, roof caps cover transitions, and upturned corners help finish changes in direction. Doufeng boards and dragon-head elements can contribute to the decorative appearance of traditional-style architecture.

When accessories are selected from the same product family, differences in color, profile, curvature, and visual proportion can be minimized. This is important on projects where the roof is highly visible from the ground. A roof may have technically adequate panels but still appear unfinished if the ridge, eaves, corners, and end details do not match.

2. Key Product Features

2.1 Concealed fastening and overlapping installation

The 720 model is installed using a concealed fastening and overlapping method. This means the primary fastening points can be hidden beneath overlapping sections or covered by adjoining components instead of remaining visibly exposed on the upper face of the roofing surface.

Concealed fastening improves the clean appearance of the roof. It also reduces the number of visible penetrations through the exposed weathering surface. On a traditional-style building, visible rows of screws can interrupt the intended appearance and make a decorative roof look more like an industrial sheet-metal installation.

From a water-management perspective, minimizing exposed penetrations can help reduce potential entry points. However, concealed fastening is not a substitute for correct installation. Overlaps must be properly aligned, fasteners must be suitable for the substrate and environmental conditions, and all transitions must be detailed according to the project design.

The overlapping method also helps create a continuous visual rhythm across the roof. When the panels are installed correctly, the wave profile remains consistent from one section to the next. This continuity contributes to both the aesthetic quality and the perceived craftsmanship of the finished building.

2.2 Rounded and full roof appearance

The wave profile gives the roof a rounded and full appearance. Compared with a flat sheet, the curved form provides stronger visual depth and greater shadow variation. Sunlight moves across the waves throughout the day, creating a roof surface with changing highlights and darker recesses.

The eave lines are clear and visually defined. This is particularly useful for buildings with projecting eaves, layered roof forms, and decorative perimeter details. A strong eave line helps distinguish the roof from the wall and gives the building a more established architectural presence.

The combination of waves, ridge elements, and accessories creates a three-dimensional appearance associated with traditional architecture. This can be useful in new construction, where designers want a historic visual language without reproducing every technical limitation of an old roofing method.

2.3 Customizable length

The product length is customizable. This allows the roofing layout to be planned according to the roof dimensions, transportation requirements, installation conditions, and preferred module arrangement.

Custom lengths can help reduce unnecessary joints along the roof surface. Fewer joints may simplify installation and reduce the number of locations that require careful overlap treatment. Length customization can also make it easier to coordinate the panel layout with eaves, ridges, valleys, and other roof features.

In practice, the optimal length depends on the building design and the capabilities of the installation team. Very long panels may reduce transverse joints but can increase handling requirements. Shorter panels may be easier to transport and place in restricted areas. A professional project review should determine the most suitable arrangement.

2.4 Broad material and thickness selection

The 720 model can be produced in aluminum alloy or steel. Available thicknesses include 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm.

This range enables the roofing system to be adapted to different performance requirements. A lighter thickness may be appropriate for certain residential or decorative applications, while a thicker specification may be selected for larger roofs, more demanding environments, greater impact resistance, or specific structural requirements.

Material selection should consider climate, exposure, structural span, wind conditions, corrosion risk, maintenance expectations, and compatibility with adjacent components. Aluminum alloy can offer a low-maintenance and corrosion-resistant option, while steel can provide a familiar structural material with a broad range of available finishes and fabrication practices.

Parameter	Available Specification	Project Consideration
Effective width	720 mm	Supports roof layout planning and quantity calculations
Length	Customizable	Can be coordinated with roof dimensions, handling, and joint placement
Thickness	0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm	Selected according to climate, structural design, durability, and project requirements
Material	Aluminum alloy or steel	Chosen according to corrosion environment, performance expectations, and design preference
Approximate roof-covering weight	3–6 kg/m²	Helps reduce dead load compared with traditional clay tile roofs

3. Advantages Compared with Conventional Roofing Options

3.1 Lower weight than traditional clay tile systems

The most significant practical advantage is the low weight of the metal roof covering. Traditional clay tile roofs can impose a substantial dead load on rafters, purlins, walls, and foundations. The 720 model wave metal roofing tile weighs approximately 3 to 6 kilograms per square meter, according to the supplied product information.

A lighter roof covering can make new construction more efficient and can be particularly valuable in renovation work. Older buildings may have timber members with limited load capacity, while replacement structures may need to be strengthened before receiving conventional tiles. A lightweight metal system can reduce the additional structural demand, subject to engineering confirmation.

Lower weight may also simplify transportation to difficult sites. Materials can be moved more easily to elevated roof areas, remote buildings, renovation locations, or sites with limited access. Reduced handling effort can contribute to shorter installation times and lower labor requirements.

3.2 Faster construction than piece-by-piece tile installation

Traditional roofing often involves installing many individual tiles and arranging them in precise patterns. The 720 model uses integrated formed panels for the main roof surface. One-piece molding and a coordinated overlap method can accelerate the installation process compared with placing numerous small clay or ceramic pieces.

Faster installation does not mean that quality control can be reduced. The roof still requires careful setting out, alignment, fastening, flashing, and inspection. Nevertheless, the integrated panel format can reduce repetitive handling and make the progress of the roofing work easier to monitor.

For contractors, this can improve scheduling. For building owners, it may reduce the period during which the building is exposed to weather during roof replacement. For developers, it can support more predictable project planning when multiple buildings require the same architectural style.

3.3 Cleaner appearance than exposed-fastener sheets

Exposed-fastener metal sheets are widely used because they are economical and easy to install. However, visible screw heads can interrupt the appearance of a decorative roof. Fasteners may also become noticeable when viewed from the ground or from neighboring buildings.

The concealed fastening and overlapping method of the 720 model creates a cleaner roof surface. This advantage is particularly relevant for temples, ancestral halls, villas, pavilions, courtyards, and cultural districts where architectural appearance is a central design objective.

A clean surface also helps the roof resemble a traditional tile assembly rather than a conventional industrial panel. The result can be a more convincing combination of heritage-inspired form and modern construction technology.

3.4 More coordinated than mixing unrelated components

Some roofing projects use panels from one supplier, ridge components from another, and custom-fabricated corner details from a third source. While this approach can be workable, it may create differences in color, shape, curvature, and dimensional compatibility.

The 720 model system includes matching ancillary components such as ridge tiles, drip eaves, roof caps, upturned corners, doufeng boards, and dragon heads. Coordinating these parts through one product family can help create a more consistent appearance and simplify procurement.

A unified system can also reduce the need for on-site improvisation. When details have been considered as part of the original product design, contractors may spend less time adapting unrelated pieces to one another. This can improve the consistency of installation across large or repetitive projects.

3.5 Greater suitability for lightweight and renovation structures

Because of its low weight, the product is suitable for wooden structures, light steel roofs, and renovation of old buildings. These applications often require a balance between visual improvement and structural restraint.

In renovation work, the existing roof structure may not be capable of supporting a heavy new layer without modification. A metal wave tile can provide a traditional appearance while limiting the additional load. It may also be installed over a prepared supporting system designed to accommodate the panel profile and fastening method.

Every renovation project should be assessed individually. Existing decay, corrosion, settlement, moisture damage, and structural movement must be addressed before new roofing is installed. A lightweight roof covering can reduce load, but it cannot correct an unsafe or deteriorated substrate.

3.6 Durable surface protection

The product uses a rust-resistant and corrosion-resistant base material with a high-weather-resistance surface coating. The supplied information indicates that the coating is designed not to fade easily and to support a long service life.

Durability depends on the selected metal, coating system, local climate, installation quality, drainage, and maintenance. Coastal areas, industrial zones, high-humidity regions, and locations exposed to pollutants may require careful material selection and periodic inspection.

When used in a suitable environment and installed correctly, a protected metal roofing surface can resist ordinary weather exposure while maintaining its appearance for an extended period. This can reduce the frequency of replacement compared with less durable roofing materials.

4. Applications in Architectural Projects

4.1 Villas and private residences

The 720 model is suitable for villas that use traditional, Chinese-style, or mixed architectural language. A residential roof can use the wave profile to create a strong visual identity without imposing the weight of a conventional clay roof.

The system can be used on main roofs, entrance canopies, detached garden structures, pavilions, and covered walkways. Matching eave and ridge components help ensure that smaller roof elements do not appear disconnected from the principal roof.

For residential applications, designers should consider the relationship between the roof and the wall finish. Natural stone, textured plaster, timber, brick, and decorative metalwork can all be combined with the wave tile profile. Color selection should be coordinated with the surrounding landscape and the intended historical character.

4.2 Temples and ancestral halls

Temples and ancestral halls often require a recognizable traditional roof form. The roof may include layered eaves, decorative ridge lines, projecting corners, and ornamental end details. The 720 model can support this visual language while offering a relatively lightweight and efficient installation method.

These buildings may also have large roof areas and complex geometry. Customizable lengths and coordinated accessories can help organize the roof layout. Because the buildings are often prominent community or cultural landmarks, surface appearance, alignment, and accessory consistency are especially important.

Where traditional aesthetics are essential, the product can be used as part of a broader architectural strategy that includes carefully designed timber or metal supporting structures, decorative fascia, color coordination, and proportionally appropriate ridge details.

4.3 Pavilions and landscape structures

Pavilions, garden buildings, entrance gates, and landscape shelters often have highly visible roofs. Their smaller scale means that the roof profile can become the primary architectural feature.

The rounded wave shape gives these structures a fuller appearance than a simple flat panel. It can also create a visual relationship with traditional gardens, courtyard layouts, and water features. Because the roof covering is lightweight, it can be used on structures where minimizing the size of supporting members is desirable.

4.4 Chinese-style commercial districts and cultural areas

Commercial streets, tourism developments, cultural parks, and heritage-inspired districts often require a consistent roof appearance across many buildings. A standardized wave metal roofing system can support repeated use of the same profile, width, thickness, and accessory language.

Consistency is important in large developments. If each building uses a different interpretation of the roof, the district may look visually fragmented. A coordinated product system can help maintain continuity while still allowing variations in roof pitch, length, building height, and facade design.

4.5 Roof renovation and replacement projects

Renovation is one of the most practical applications for a lightweight metal roof. Buildings with old or damaged clay tiles may need a new roof that preserves the original architectural appearance. Replacing the old covering with a lighter system may reduce the need for extensive structural modification.

Renovation teams should document the existing roof before work begins. The survey should identify the roof slope, framing condition, drainage paths, existing flashing, support spacing, and areas of water penetration. The new system can then be designed around the actual conditions rather than relying only on visual assumptions.

5. Manufacturing Process and Quality Strengths

5.1 Roller forming for consistent profiles

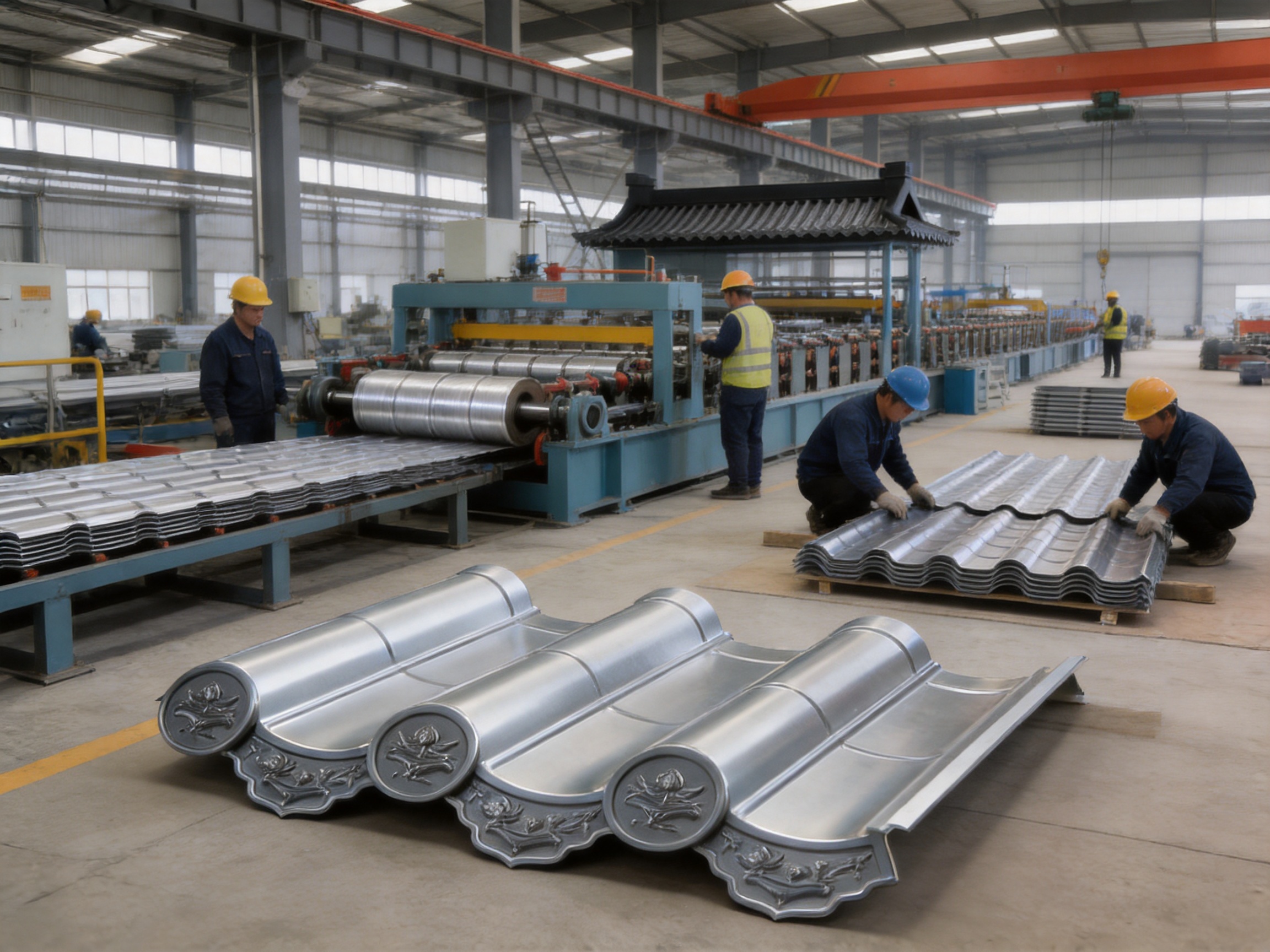

The main panels are produced through an integrated roller-pressing process. Roller forming is well suited to long, repeated profiles because it creates consistent waves along the length of the material. Controlled forming helps maintain the intended geometry and supports efficient production.

A consistent profile is important for installation. If the wave spacing or curvature varies excessively, adjacent panels may not align correctly. Inconsistent dimensions can also affect the fit of ridge pieces, eave components, corner details, and overlapping joints.

Modern roller-forming production allows the manufacturer to control the profile through tooling, material preparation, forming speed, and dimensional inspection. This is particularly valuable when projects require repeated production of the same 720 mm effective-width product.

5.2 Material preparation and thickness control

The availability of multiple thicknesses indicates that the product can be configured for different project needs. Before forming, the selected aluminum alloy or steel must be suitable for bending and shaping without excessive cracking, distortion, or surface damage.

Thickness control is important because it affects weight, rigidity, handling, forming behavior, and resistance to impact or deformation. The selected specification should be confirmed during the design stage so that production, structural calculations, and installation details are based on the same material assumptions.

For export and large-scale projects, controlled material sourcing is especially important. The manufacturer’s ability to work with established material suppliers in China and abroad supports a more organized supply process for developers, architects, engineering firms, contractors, and distributors.

5.3 Integrated accessory production

A roof system is only as strong visually and technically as its details. Ridge tiles, drip eaves, roof caps, upturned corners, doufeng boards, and dragon heads require careful forming and dimensional coordination.

Producing or coordinating these accessories as part of the same system helps preserve the intended design language. It also supports better compatibility between the main roofing panels and the components used at edges, peaks, corners, and transitions.

Accessory manufacturing requires attention to curvature, overlap, drainage, fastening, and visual proportion. A ridge component that is too small or incorrectly shaped can weaken the appearance of the whole roof. The same is true of poorly coordinated eave and corner details.

5.4 Design and drawing refinement capabilities

The manufacturer provides drawing refinement and consultation services in addition to material supply, installation, and after-sales maintenance. These capabilities are valuable because traditional-style roofs often have complex geometry and many interfaces.

Drawing refinement may include reviewing roof plans, confirming effective coverage, coordinating panel lengths, identifying accessory quantities, and checking the relationship between the roof covering and the supporting structure. Early review can reduce errors before production begins.

Technical consultation is also useful when a project combines different roofing systems. For example, a development may use wave metal tiles on decorative buildings, standing seam aluminum-magnesium-manganese panels on modern volumes, and metal curtain wall materials on vertical surfaces. A manufacturer with experience across several metal enclosure systems can help coordinate these elements.

5.5 Production capacity and workforce

The company operates a production area of approximately 10,000 square meters, has a monthly production capacity of more than 100,000 units, and employs more than 200 experienced workers. These resources support both standard product manufacturing and project-based supply.

Production capacity is important for large developments, multi-building projects, and distributors that require dependable replenishment. It can also help support export orders where production schedules, packaging, documentation, and shipping coordination must be carefully managed.

A sizable experienced workforce can contribute to production continuity, quality inspection, product handling, technical support, and installation coordination. Capacity alone does not guarantee quality, but it provides a foundation for organized manufacturing when combined with appropriate process control and technical management.

5.6 Experience across metal enclosure systems

The company specializes in metal roofing and wall materials, including standing seam aluminum-magnesium-manganese roofing systems, metal curtain wall systems, flat interlocking roofing and cladding systems, antique-style metal glazed tile systems, external wall insulation systems, and metal concealed-lock barrel tile roofing systems.

This range of experience is relevant to the 720 model because modern construction projects often require more than one type of enclosure. A project may combine decorative wave tiles with standing seam roofs, metal wall panels, fascia systems, and insulated wall assemblies.

Experience with different systems can support more practical detailing at interfaces. It may also help architects and contractors select a suitable material according to roof geometry, architectural style, climate, construction sequence, and budget.

6. Installation Principles and Project Planning

6.1 Begin with roof measurement and structural review

Before ordering materials, the roof should be measured carefully. Important information includes roof length, width, slope, eave projection, ridge length, valley locations, corner conditions, penetrations, and the spacing of supporting members.

The supporting structure must be checked for strength, alignment, corrosion, decay, and movement. A lightweight roofing product reduces dead load, but the structure still needs to resist wind uplift, maintenance loads, snow where applicable, and the weight of the complete roof assembly.

6.2 Coordinate panel layout

The 720 mm effective width should be incorporated into the roof layout. Designers should determine how many panels are required across each roof plane and where cut panels will be located. A balanced layout is generally preferable to leaving very narrow pieces at one side of the roof.

Customizable length allows the panel arrangement to be coordinated with the eave and ridge. The layout should account for overlaps, edge conditions, valleys, penetrations, and the position of accessory components. Clear drawings can help prevent confusion during installation.

6.3 Prepare the substrate

The substrate should be level, stable, and suitable for the selected fastening method. Depending on the project, the roof may use purlins, battens, sheathing, a timber frame, or a light steel support system.

Any unevenness that could distort the wave profile should be corrected before panel installation. The support spacing must be compatible with the product thickness and structural design. Drainage paths should remain open, and materials that may cause galvanic corrosion should be isolated where necessary.

6.4 Install panels and concealed fasteners

Installation should follow the approved drawings and the manufacturer’s technical instructions. Panels should be aligned carefully so that the wave profile remains continuous. Fasteners must be suitable for the substrate, material combination, wind conditions, and expected service environment.

Because the system uses concealed fastening and overlapping, installers must pay close attention to the direction of installation and the sequence of adjacent components. Incorrect sequencing can make later overlaps difficult or create weak points at the eave, ridge, or side edges.

6.5 Complete eaves, ridges, corners, and penetrations

Roof edges and transitions deserve the same level of attention as the main roof surface. Drip eaves should guide water away from the structure. Ridge tiles and roof caps should be aligned and secured. Upturned corners, doufeng boards, and dragon-head details should be installed according to the design.

Chimneys, skylights, ventilation units, pipes, and other penetrations require carefully designed flashing. Water should be directed around the penetration and back onto the roof drainage path. Decorative components should never obstruct drainage or create pockets where water can accumulate.

7. Weather Resistance, Maintenance, and Service Life

7.1 Protection against corrosion

The base material is described as rust-proof and corrosion-resistant, and the surface uses a high-weather-resistant coating. These characteristics support use in outdoor environments where the roof is exposed to rain, sunlight, wind, and seasonal temperature changes.

Material selection remains important. Coastal air, salt spray, industrial emissions, animal waste, and persistent moisture can accelerate corrosion if the roof is not correctly specified or maintained. Cut edges, scratches, incompatible fasteners, and trapped debris should be addressed during installation and inspection.

7.2 Color and appearance retention

The surface coating is designed to resist fading. Maintaining color consistency is particularly important for traditional-style buildings because the roof often covers a large visible area. Uneven fading or mismatched replacement parts can affect the appearance of an entire building.

Regular cleaning can help remove leaves, dust, bird deposits, and other contaminants. Cleaning methods should be gentle and compatible with the coating. Abrasive tools, aggressive chemicals, and unapproved repairs may damage the surface and reduce its protective performance.

7.3 Routine inspection

Roof inspections should check for displaced components, loose fasteners, damaged coatings, blocked drainage paths, sealant deterioration, and movement around penetrations. Inspections are especially useful after severe weather events.

Where the roof is installed on a public building, temple, commercial district, or large villa, a scheduled maintenance program can help identify minor issues before they become major water-infiltration problems. Maintenance personnel should use safe access procedures and avoid unnecessary walking on areas that are not designed for foot traffic.

8. Sustainability and Lifecycle Considerations

Durable roofing materials can support sustainability by reducing the frequency of replacement and limiting the consumption of new materials over the life of a building. A long-lasting metal roof may also reduce demolition waste compared with short-service-life alternatives.

The low weight of the 720 model can reduce structural material requirements in suitable applications. Smaller or lighter supporting members may be possible in some designs, although this must be verified through engineering. Lower transportation weight may also improve logistics efficiency.

The company states that it is committed to combining architectural aesthetics, environmental responsibility, and long-lasting quality. Its product range includes durable materials such as aluminum-magnesium-manganese and titanium-zinc alloys, supporting broader sustainable building objectives.

Sustainability should be evaluated across the complete lifecycle. Important factors include raw material sourcing, coating durability, manufacturing efficiency, transportation, installation waste, maintenance, disassembly, and the potential recovery or recycling of metal components at the end of service.

9. Why Choose a Specialized Metal Roofing Manufacturer

Choosing a specialized manufacturer can provide advantages beyond the supply of individual panels. A specialist understands the relationship between roof profile, material selection, accessories, fasteners, drainage, and installation sequence.

For architects, technical consultation can help convert a design concept into a buildable roof system. For engineering companies, drawing support can assist with dimensions, interfaces, and material specifications. For contractors, coordinated components can simplify site work. For distributors, a broad product range and production capacity can support different customer requirements.

The company provides research and development, manufacturing, processing, sales, installation, and after-sales maintenance services. This integrated capability allows it to participate in different stages of a project rather than acting only as a material vendor.

Its location in Taicang, Suzhou, near Shanghai, provides access to a major industrial and logistics region. The company exports to more than 100 countries and serves developers, architects, engineering companies, contractors, and material distributors.

The company was founded in 2019 and has expanded its product range, production capacity, service network, and technical capabilities. Its stated corporate philosophy emphasizes professionalism, passion, integrity, and pragmatism, while its values focus on dedication, teamwork, and innovation.

10. Selecting the Correct Specification

The correct 720 model specification should be chosen according to the project’s architectural, structural, environmental, and commercial requirements. The available material options are aluminum alloy and steel, while thicknesses range from 0.5 mm to 1.2 mm.

For a small decorative pavilion in a moderate environment, a lighter specification may be appropriate if supported by the design. For a large public building in a high-wind region or a location subject to greater exposure, the project may require a thicker material, stronger supporting system, and more detailed wind-uplift design.

Roof pitch is another important consideration. The slope must support reliable drainage and should be compatible with the product’s overlap and sealing method. Very low-slope applications may require additional waterproofing measures or a different roofing system.

Color, coating, accessory type, and edge treatment should be confirmed before production. Samples or approved finish references can help reduce differences between design expectations and the final roof appearance.

11. Quality Control Considerations

Quality control should begin with raw materials and continue through forming, accessory production, packaging, delivery, and installation. Dimensional accuracy is important because the 720 mm effective width and wave profile determine how panels fit together.

Visual inspection should identify scratches, dents, coating defects, deformation, uneven edges, or inconsistent forming. Accessories should be checked for correct quantity, profile, finish, and compatibility with the main panels.

Packaging should protect the metal surfaces during handling and transport. Panels should be stored in a dry, ventilated location and protected from standing water. Improper storage can cause staining, coating damage, or deformation before installation.

On the construction site, installers should use appropriate lifting and handling methods. Dragging panels across one another can scratch the finish. Cutting should be performed with tools and procedures that minimize damage to the protective coating and avoid leaving corrosive metal filings on the roof.

12. Practical Advantages for Different Stakeholders

12.1 Benefits for architects

Architects can use the 720 model to achieve a traditional visual effect while working with a modern lightweight material. The wave profile and accessory range support detailed roof compositions, while customizable lengths offer flexibility in layout.

The product can help bridge the gap between historical appearance and contemporary construction requirements. It may be especially useful when a project must meet visual guidelines for a traditional district but also requires efficient construction and reduced structural loading.

12.2 Benefits for developers

Developers can benefit from coordinated supply, repeatable production, and a product suitable for multiple building types. Standardized roof systems can support consistency across villas, pavilions, entrance structures, and commercial buildings within one development.

The low weight and integrated installation method may support better construction scheduling. The availability of technical consultation, production, installation, and after-sales services can also simplify project coordination.

12.3 Benefits for contractors

Contractors can work with a system designed around formed panels and matching accessories. The one-piece molding approach can reduce repetitive tile placement on the main roof areas, while concealed fastening can improve the final appearance.

Clear drawings and preplanned component quantities can make installation more predictable. Contractors should still ensure that their teams understand the panel sequence, overlap requirements, accessory installation, cutting procedures, and site safety measures.

12.4 Benefits for building owners

Building owners receive a roof that combines decorative character with modern metal construction. The low weight can be valuable for renovation, while the corrosion-resistant material and weather-resistant coating support long-term use when correctly maintained.

The unified appearance of the roof can enhance the building’s identity. For temples, ancestral halls, tourist buildings, and cultural facilities, this architectural value may be as important as basic weather protection.

13. Frequently Asked Questions

Q1. What is the 720 model wave metal roofing tile?

The 720 model is an integrated roller-pressed metal roofing system with a standard effective width of 720 mm. It has a rounded wave profile designed to resemble traditional curved and flat tile roof forms while providing the lightweight and durable characteristics of modern metal roofing.

Q2. Where can the product be used?

It is suitable for villas, temples, ancestral halls, pavilions, Chinese-style courtyards, ancient-style districts, cultural buildings, commercial developments, landscape structures, and renovation projects involving traditional-style roofs.

Q3. Does the product use exposed screws?

The system is designed for concealed fastening and overlapping installation, so exposed screws are not normally visible on the main roof surface. Exact fastening details should follow the approved design and the manufacturer’s installation instructions.

Q4. What materials are available?

The product can be manufactured from aluminum alloy or steel. The best selection depends on the project environment, structural requirements, corrosion exposure, finish expectations, and budget.

Q5. What thicknesses are available?

Available thicknesses include 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm. The appropriate thickness should be selected according to engineering calculations and site conditions.

Q6. Can the panel length be customized?

Yes. Product length is customizable. Custom length can help coordinate the roof layout, reduce unnecessary joints, and adapt the panels to specific project dimensions and handling requirements.

Q7. How heavy is the finished roof covering?

The supplied product information states an approximate weight of 3 to 6 kilograms per square meter. This is about one-eighth to one-tenth the weight of traditional clay tile roofs, although the final installed weight depends on the complete roof assembly.

Q8. Is the product suitable for renovation projects?

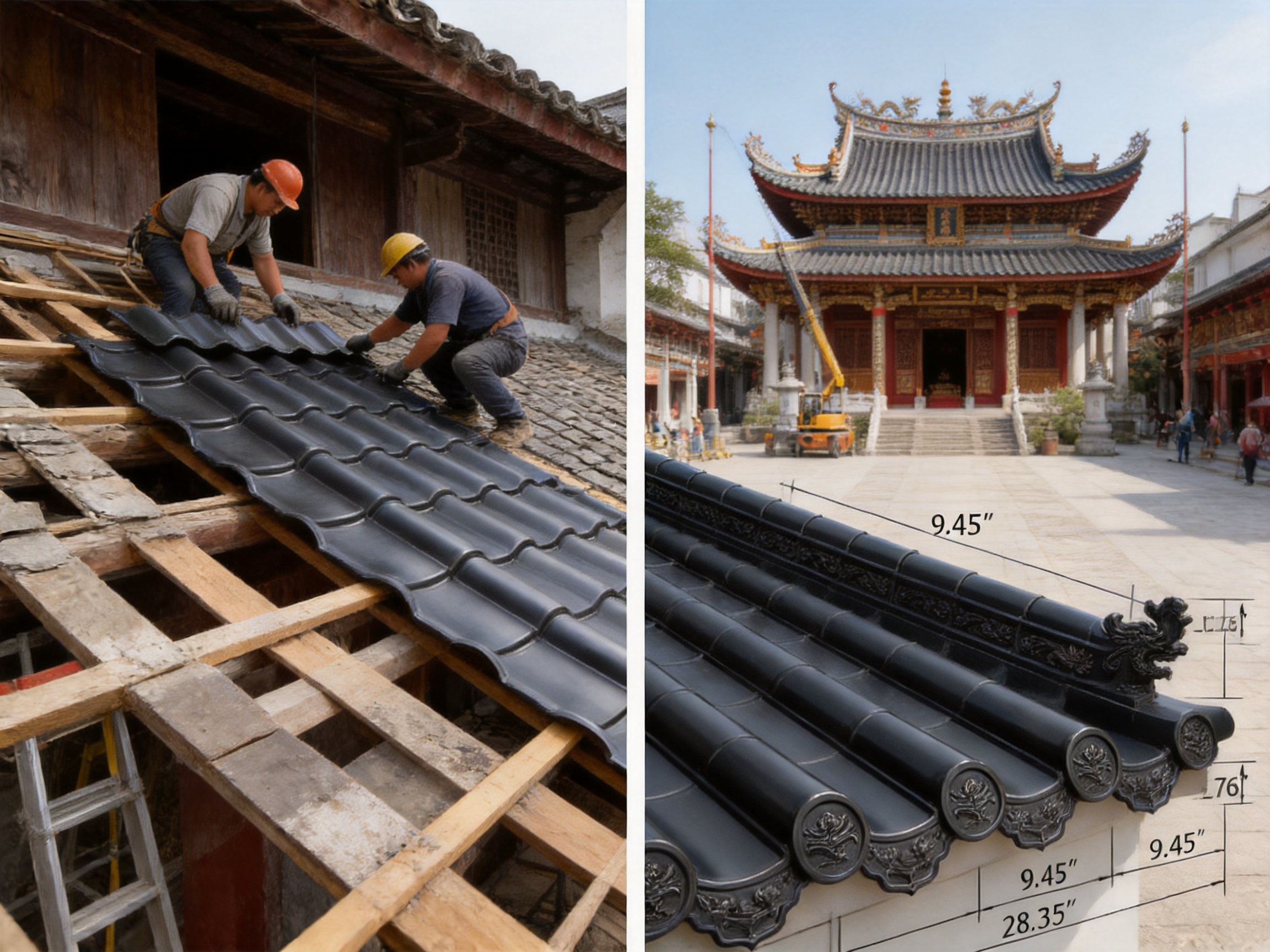

Yes. Its low weight makes it suitable for many renovation projects, including old buildings and timber structures. The existing roof must be inspected by qualified professionals before installation to verify structural condition and determine the appropriate supporting and waterproofing details.

Q9. What accessories are available?

Matching accessories include ridge tiles, drip eaves, roof caps, upturned corners, doufeng boards, and dragon heads. These components help create a unified traditional-style roof appearance.

Q10. Is the coating resistant to fading?

The product uses a high-weather-resistant surface coating designed to resist fading. Actual appearance retention depends on the coating specification, climate, pollution, maintenance, and exposure conditions.

Q11. Can the product be used in coastal or industrial areas?

It may be suitable when the material, coating, fasteners, and detailing are selected for the local corrosion environment. Coastal and industrial locations require careful specification and more frequent inspection than moderate inland environments.

Q12. Does the manufacturer provide design support?

The company provides drawing refinement and consultation services, along with material supply, construction and installation, and after-sales maintenance services. These capabilities can help coordinate the roof system before production and during construction.

Q13. What makes this system different from ordinary corrugated metal sheets?

The 720 model is designed specifically for traditional-style architecture. It provides a rounded, full roof appearance, concealed fastening, coordinated decorative accessories, and a profile intended to resemble traditional tile forms. Ordinary corrugated sheets generally provide a simpler industrial appearance and may use exposed fasteners.

Q14. How should the roof be maintained?

Maintenance should include periodic inspection of overlaps, fasteners, coatings, accessories, drainage paths, ridges, eaves, corners, and penetrations. Leaves, dirt, and other debris should be removed using methods that do not damage the coating.

14. Conclusion

The 720 model wave metal roofing tile provides a practical way to combine traditional architectural expression with modern metal roofing technology. Its integrated roller-pressed construction, 720 mm effective width, customizable length, multiple thickness options, and aluminum alloy or steel material choices allow the product to serve a broad range of projects.

Its principal advantages include low weight, fast construction, concealed fastening, a rounded and full roof profile, coordinated accessories, corrosion-resistant materials, and a weather-resistant surface coating. These characteristics make it a strong alternative to heavy clay tile roofs, visually plain flat sheets, and exposed-fastener corrugated panels in projects where appearance and construction efficiency are equally important.

The product is particularly suitable for villas, temples, ancestral halls, pavilions, courtyards, cultural districts, and renovation projects. Its low roof-covering weight can help reduce structural demand, while its traditional appearance supports architectural designs that require a strong sense of heritage and three-dimensional roof form.

The manufacturer strengthens the product offering through roller-forming production, accessory coordination, drawing refinement, technical consultation, installation services, after-sales maintenance, a 10,000-square-meter production area, more than 200 experienced workers, and monthly production capacity exceeding 100,000 units. Its experience across metal roofing, wall systems, curtain walls, interlocking panels, concealed-lock roofing, and insulation systems supports comprehensive enclosure solutions.

For the best result, each project should be evaluated according to its roof geometry, structural system, climate, corrosion exposure, drainage, wind conditions, material specification, and installation requirements. When these factors are properly coordinated, the 720 model wave metal roofing system can deliver a durable, lightweight, and visually distinctive roof for both new construction and renovation.

References

1. Product specification sheet for the 720 model wave metal roofing tiles, including effective width, customizable length, available thicknesses, and material options.

2. Manufacturer technical information regarding concealed fastening, overlapping installation, matching roof accessories, product weight, and application scenarios.

3. Manufacturer company profile covering metal roofing production, wall systems, technical consultation, installation, after-sales services, production capacity, and export experience.

4. General principles of metal roof design, including substrate preparation, drainage planning, fastening, corrosion control, coating maintenance, and roof inspection.

5. General architectural conservation and renovation practices for traditional-style buildings, lightweight roof replacement, and heritage-inspired construction.

6. General building-material selection principles for aluminum alloy roofing, steel roofing, weather-resistant coatings, and sustainable enclosure systems.

Product: 720 Model Wave metal roofing tiles
