Rectangular Metal Roofing Tiles: A High-Performance Solution for Modern Roofs and Architectural Facades

Rectangular metal roofing tiles combine precise geometry, concealed fastening, durable metal materials, and adaptable installation into a refined roofing and cladding system. Designed as small rectangular units with folded edges, these tiles interlock with neighboring panels to create a continuous architectural surface. The result is a roof or facade with clean lines, strong visual order, reliable weather protection, and a distinctive metallic character.

Unlike conventional roofing sheets that often rely on exposed screws, large overlapping panels, or repetitive wave profiles, rectangular metal roofing tiles provide a more controlled and refined appearance. Their concealed fastening arrangement keeps the visible surface uninterrupted, while the folded-edge connection creates a layered system that supports waterproofing and resistance to wind uplift. This combination makes the product suitable for high-end residential, commercial, cultural, and public architecture.

The product is manufactured and supplied by Suzhou Donghong Metal Materials Technology Co., Ltd., a Chinese manufacturer specializing in metal roofing and wall systems. The company integrates material processing, product development, drawing refinement, manufacturing, project consultation, installation support, and after-sales service. With experience in metal enclosure systems and the production capacity to serve international markets, Donghong positions this rectangular panel system as a flexible solution for architects, contractors, developers, and distributors.

1. Product Overview

Rectangular metal roofing tiles are compact metal units formed into a regular rectangular profile. Each unit includes folded edges that allow adjacent pieces to interlock or overlap. Hidden fastening components secure the tiles to the supporting structure without leaving visible screws across the finished surface.

The standard product size is 220 millimeters by 300 millimeters, while customized dimensions can be developed according to project requirements. Available thicknesses include 0.5 millimeter, 0.6 millimeter, 0.7 millimeter, 0.8 millimeter, 0.9 millimeter, 1.0 millimeter, and 1.2 millimeters. This range enables the system to be specified for different visual, structural, fabrication, and environmental requirements.

The primary material choices are aluminum alloy, titanium-zinc alloy, and copper. Each material provides a different balance of weight, appearance, corrosion resistance, durability, formability, and long-term aging characteristics. The selection can therefore be adapted to the architectural concept, local climate, project budget, and expected service life.

The regular arrangement of the tiles gives the finished roof or wall a modern and minimalist appearance. The narrow joints and repeated rectangular modules form a precise visual rhythm. Depending on the selected material, finish, orientation, and detailing, the same basic product can support contemporary, industrial, institutional, or premium residential designs.

Parameter	Specification
Product Type	Rectangular metal roofing tile
System Category	Flat lock metal panel
Standard Product Size	220 mm × 300 mm
Size Options	Customized sizes available
Available Thicknesses	0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm
Available Materials	Aluminum alloy, titanium-zinc alloy, and copper
Visible Fastening	Concealed fastening design
Primary Applications	Roofing, curtain walls, curved roofs, domes, spires, and feature facades

The compact module size is one of the product’s most important characteristics. Large roofing panels can be efficient on simple slopes, but they may become difficult to adapt when a building incorporates curves, changes in direction, tapered forms, or complex intersections. Smaller rectangular tiles can follow these transitions more gradually, helping the designer maintain a consistent material language across the entire building envelope.

Rectangular Metal Roofing Tile

2. Design and Appearance

Architecture increasingly requires building materials to perform two functions at the same time: they must protect the structure from weather while also contributing to the identity of the building. Rectangular metal roofing tiles are designed for this dual role. Their ordered layout creates an intentional surface rather than a purely functional covering.

The rectangular pattern gives the roof or wall a clear directional quality. Tiles can be arranged to emphasize the length of a building, reinforce the geometry of a curved surface, or create a carefully proportioned grid. The straight lines and repeated modules can visually connect roof planes with vertical facades, canopy structures, entrance features, and other architectural elements.

Because the tiles are relatively small, the system can express scale in a way that large-format metal sheets cannot. Each module contributes to the overall texture, allowing the finished surface to appear detailed without becoming visually disorganized. The result is a balance between a smooth modern envelope and a crafted architectural finish.

The absence of exposed screws is particularly important for high-visibility projects. Exposed fasteners can interrupt the pattern of a roof, collect dirt, create points of visual contrast, and complicate the appearance of prominent facade areas. With concealed fastening, the surface remains cleaner and the design is less dependent on the exact color or alignment of screw heads.

The system may also be specified with different metals to achieve different visual effects. Aluminum alloy can provide a lightweight contemporary appearance. Titanium-zinc alloy is often selected for its distinctive architectural character and natural aging potential. Copper offers a warm, traditional, or premium appearance and can develop a changing patina over time. Final appearance depends on the material, surface treatment, environmental conditions, and project design.

2.1 Architectural flexibility

The product is suitable for both roofs and curtain wall applications. On a roof, the rectangular units create an interlocking weather-resistant surface. On a wall, the same modular language can provide a continuous metal skin with carefully controlled horizontal and vertical lines.

The system is particularly appropriate where the building form is more important than simple installation speed. Museums, art galleries, science and technology museums, theaters, exhibition centers, cultural buildings, and landmark public facilities often require materials that can follow expressive forms. Rectangular metal roofing tiles can help translate complex architectural geometry into a practical external envelope.

The product may also be considered for domes, spires, curved roofs, twisted facades, entrance canopies, and sculptural building components. Small sections can be positioned individually or in coordinated courses, allowing the installation layout to respond to changing curvature and direction.

3. Concealed Fastening and Waterproofing Principles

A roofing or cladding system must do more than look attractive. It must control water, accommodate movement, resist wind, and remain serviceable over its intended life. The rectangular metal tile system addresses these requirements through folded edges, interlocking relationships, overlapping layers, and hidden fastening components.

In a concealed-fastening system, the attachment points are positioned beneath or within adjoining units rather than directly exposed on the visible face. This arrangement protects the fasteners from direct exposure and maintains a cleaner surface. It also reduces the number of visible penetrations that may otherwise require additional sealing or aesthetic treatment.

The folded edges of each tile create a connection zone between neighboring pieces. When the units are properly arranged, one layer overlaps another and helps direct water away from the supporting structure. The interlocking geometry forms part of the system’s drainage and weather-resistance strategy.

Waterproofing performance is influenced by many factors, including roof pitch, substrate design, underlayment, flashing, drainage paths, penetrations, joint detailing, fastener selection, and installation quality. The rectangular tiles provide a strong product foundation, but the complete roof or facade must be designed as an integrated system.

For this reason, project-specific drawings and installation procedures are important. Designers and contractors should evaluate the building location, rainfall, snow, wind exposure, thermal movement, substrate conditions, and connection details before finalizing the specification.

3.1 Resistance to wind and detachment

The interlocking arrangement contributes to resistance against wind-related movement and detachment. Rather than relying only on individual exposed screws, the system distributes connections through overlapping and folded sections. Properly installed units work together as a continuous surface.

Wind performance still depends on the structural substrate, fixing density, edge zones, corners, roof geometry, building height, and local code requirements. High-wind locations require particular attention to perimeter detailing and connection design. The product’s interlocking concept can support a robust solution, but engineering verification remains essential for each project.

Compared with loosely overlapping decorative tiles or systems with limited mechanical engagement, the folded-edge design offers a more integrated connection between adjacent units. This is one of the reasons the product is suitable for demanding architectural envelopes where appearance and attachment security must be considered together.

4. Adaptability to Complex Architectural Forms

One of the strongest advantages of rectangular metal roofing tiles is their ability to accommodate complex shapes. Traditional large sheets are generally most efficient on regular planes. When the substrate includes curves, cones, domes, or transitions between surfaces, large panels may require extensive cutting, special fabrication, or visible compromises.

Small rectangular units reduce the geometric difficulty by dividing the surface into manageable sections. Each tile can be fitted to the local condition, while the overall installation follows the larger shape of the building. This modular approach is particularly valuable for roofs and facades that include gradual curvature or irregular changes in direction.

Curved roofs often demand careful control of tile alignment. The installation team must determine the starting points, course spacing, joint direction, and transition details. With appropriate drawings and field coordination, the rectangular format can maintain a disciplined appearance even across a curved surface.

Conical and tapered forms create additional challenges because the available width changes as the surface rises or narrows. Smaller panels can be arranged with controlled variation and custom sizing where necessary. The product’s customizable dimensions allow the manufacturer to respond to project-specific geometry rather than forcing the entire design to conform to a standard sheet.

Hyperbolic and twisted surfaces are among the most complex applications. These forms may not be developable from a flat sheet without distortion or segmentation. A modular tile system can provide a practical method for covering the surface through numerous smaller transitions. The result can preserve the visual concept of the architecture while reducing the limitations associated with large rigid panels.

5. Materials and Thickness Options

Material selection affects the appearance, handling, durability, fabrication process, and cost of the finished system. The availability of aluminum alloy, titanium-zinc alloy, and copper gives architects and project owners several options for matching the enclosure to the building’s purpose and environment.

5.1 Aluminum alloy

Aluminum alloy is widely valued for its relatively low weight, corrosion resistance, and versatility. A lightweight panel can reduce handling demands and may help limit the load placed on the supporting structure. Aluminum can also be formed into detailed profiles and adapted to a variety of architectural applications.

For projects with extensive roof areas or complex facades, the lower weight of aluminum can be a practical advantage during transportation, lifting, and installation. Its modern appearance is appropriate for cultural buildings, commercial developments, public facilities, and contemporary residential architecture.

5.2 Titanium-zinc alloy

Titanium-zinc alloy is recognized as a premium architectural metal with a distinctive surface character. It can provide a refined appearance and may develop a natural protective patina under suitable environmental conditions. Designers often select titanium-zinc materials when the roof or facade is intended to become an important part of the building’s identity.

The material is especially suitable for projects seeking a combination of contemporary form, material depth, and long-term visual development. As with all metals, compatibility with adjacent materials and local environmental conditions should be reviewed during design.

5.3 Copper

Copper provides a warm and recognizable architectural finish. Its color can change over time as the surface reacts with the environment, creating an evolving appearance. This characteristic can complement historic references, cultural buildings, premium residences, and landmark projects.

Copper also requires careful consideration of drainage, runoff, contact with dissimilar metals, and surrounding materials. Proper detailing is essential to prevent unwanted galvanic interaction and staining of adjacent surfaces.

5.4 Thickness selection

The available thickness range extends from 0.5 millimeter to 1.2 millimeters. A thinner option may be appropriate when weight, forming, and cost are important considerations. A thicker option may be selected when greater rigidity, impact resistance, or a more substantial architectural feel is desired.

Thickness should not be chosen in isolation. The correct specification depends on material type, tile dimensions, support spacing, wind loads, handling requirements, roof slope, installation method, and local standards. Donghong can assist customers in evaluating the relationship between these factors and selecting a suitable configuration.

6. Advantages Compared with Conventional Metal Roofing

Rectangular metal roofing tiles offer several advantages over conventional exposed-fastener sheets, large corrugated panels, and basic overlapping metal tiles. The most visible advantage is the cleaner surface. Concealed fasteners create a more continuous finish and reduce visual interruptions.

A second advantage is modular flexibility. Large panels are efficient for straightforward roofs, but their size can make them difficult to use on curved or highly articulated buildings. The smaller rectangular format can adapt more easily to changes in geometry and support a wider range of architectural concepts.

A third advantage is the balance between texture and simplicity. Corrugated roofing creates a strong repetitive profile, while large flat sheets can appear visually plain. Rectangular tiles occupy a middle position: they provide clear module lines and metallic texture without relying on deep waves or overly decorative forms.

A fourth advantage is the potential for unified roof and facade design. Because the product is suitable for roofing and curtain wall applications, architects can use a similar module and material language across several parts of the building envelope. This can help create visual continuity between horizontal and vertical surfaces.

A fifth advantage is the ability to customize. Standard dimensions provide a repeatable manufacturing basis, while customized sizes can support unusual geometries, special proportions, and project-specific detailing. Customization may be particularly valuable for landmark buildings where standard products would not adequately reflect the design intent.

Comparison Factor	Rectangular Metal Roofing Tiles	Conventional Large Metal Sheets	Exposed-Fastener Corrugated Panels
Visible fasteners	Concealed fastening design	May be concealed or exposed depending on system	Usually visible on the panel face
Surface appearance	Ordered rectangular modules with refined metallic texture	Broad uninterrupted sheet appearance	Strong linear corrugated profile
Complex curved forms	Highly adaptable through small units and custom sizing	More difficult and may require extensive forming	Generally limited by panel geometry
Roof and facade continuity	Suitable for both roofing and curtain wall applications	Depends on the selected system	Often used primarily for functional roofing or siding
Architectural flexibility	High, particularly for domes, spires, curves, and feature facades	Best suited to regular planes	Best suited to simple, economical forms
Design character	Modern, precise, modular, and premium	Minimal and broad-scale	Industrial and strongly ribbed

These comparisons do not mean that one roofing system is appropriate for every project. Large sheets may remain efficient for simple industrial buildings, while corrugated panels can be highly economical for agricultural and utility structures. The strength of rectangular metal roofing tiles is their ability to combine refined appearance, modular flexibility, and complex-form adaptability for projects where architectural quality is a priority.

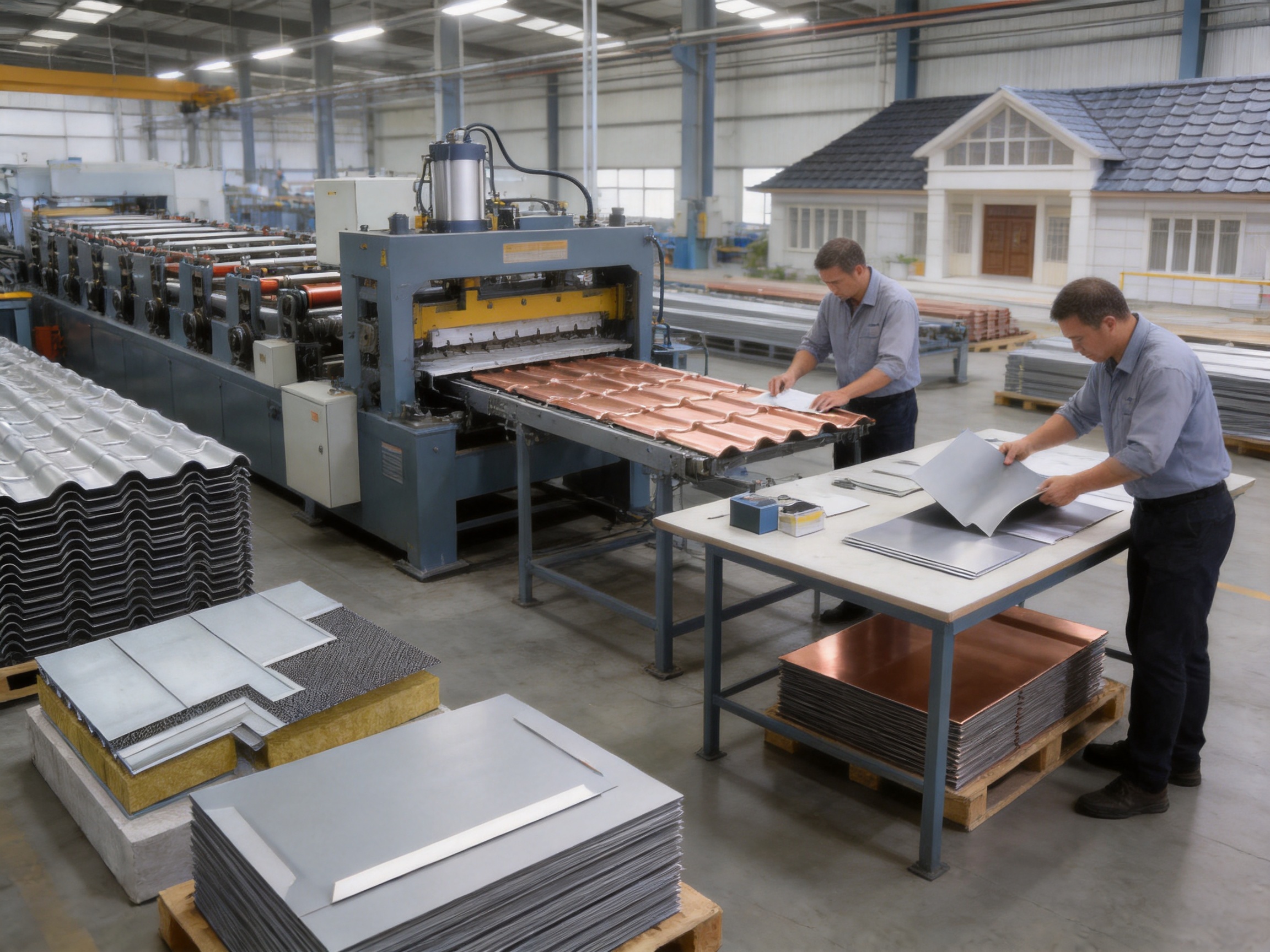

7. Manufacturing Capabilities and Quality Control

The performance of a metal enclosure product depends heavily on manufacturing accuracy. Folded edges, concealed connections, tile dimensions, and joint relationships must be produced consistently. Small variations can accumulate across a large facade or roof, affecting alignment, drainage, and visual quality.

Suzhou Donghong Metal Materials Technology Co., Ltd. operates a production area of approximately 10,000 square meters and has a reported monthly production capacity of more than 100,000 units. The company employs more than 200 experienced workers and serves customers in more than 100 countries. These resources support both standard product manufacturing and project-based customization.

The company’s manufacturing process begins with material selection and specification confirmation. The required alloy, thickness, dimensions, surface expectations, and application conditions are reviewed before production. This initial control is important because different materials require different forming, handling, storage, and finishing practices.

7.1 Drawing refinement and technical preparation

For complex roofs and facades, production quality begins before the first panel is formed. Donghong provides drawing refinement and consultation to help transform architectural concepts into manufacturable panel layouts. The technical team can review dimensions, joints, edge conditions, transitions, and installation sequences.

Drawing refinement is particularly important for curved and irregular buildings. The project may require different module arrangements in different zones, along with special pieces at corners, ridges, valleys, openings, parapets, and changes in curvature. Coordinating these elements in advance helps reduce field modifications and material waste.

A well-prepared drawing package can also improve communication among the architect, general contractor, facade contractor, installer, and manufacturer. Clear information about panel direction, support conditions, joint alignment, and connection points can make the installation process more predictable.

7.2 Forming and edge precision

The folded edges are central to the performance of the product. They must be formed accurately enough to interlock with neighboring units while maintaining the designed appearance. Excessive variation may create uneven joints, installation difficulty, or inconsistent drainage paths.

Manufacturing controls should therefore address dimensional accuracy, edge geometry, corner condition, surface protection, and batch consistency. Repeated inspection during production helps identify deviations before products are packed and shipped to the project site.

7.3 Production capacity and project support

A production capacity exceeding 100,000 units per month allows the company to respond to larger orders while maintaining a structured manufacturing schedule. Capacity is especially relevant when a project includes a large roof area, multiple buildings, or a tight construction program.

At the same time, complex architectural projects often require more than high output. They require technical coordination, sample review, custom components, packaging control, and delivery planning. Donghong combines manufacturing with professional design support and construction experience, allowing it to participate in the project beyond the role of a basic material supplier.

The company’s experience includes profiled steel sheets, standing seam metal roofing, wall systems, and on-site construction project management. This broader background helps the technical team understand how individual tiles relate to substrates, secondary structures, insulation, drainage, flashing, and adjacent envelope systems.

8. Installation and Project Coordination

Installation quality is essential to realizing the advantages of rectangular metal roofing tiles. The supporting substrate should be checked for alignment, flatness, strength, and compatibility before installation begins. Any irregularities that may affect the tile layout should be addressed during preparation.

Installation normally starts with a controlled reference line or datum. The first course determines the alignment of subsequent courses, so the starting position must be coordinated with roof edges, facade joints, openings, ridges, valleys, and other visible features.

Tiles are then positioned according to the approved drawings. Folded edges and concealed fasteners must be engaged correctly. Improperly locked joints may reduce weather resistance or create a visible inconsistency in the finished surface.

Special attention is required at edges and penetrations. Eaves, verges, parapets, ridges, roof-to-wall transitions, drains, skylights, vents, and service penetrations should be detailed as part of the complete system. These areas are often more important to long-term waterproofing than the field of the roof itself.

For curved or irregular buildings, installation may need to proceed in carefully controlled zones. The contractor should verify the actual substrate geometry against the fabrication drawings and communicate any site deviation before installing large quantities of material.

8.1 Installation support

Donghong offers construction and installation services as part of its wider project support capability. This can be valuable for international customers, developers, and engineering companies that require assistance with specialized metal enclosure work.

Installation support may include technical consultation, drawing interpretation, material coordination, on-site construction guidance, and project management. The exact scope should be confirmed according to the contract, location, project size, and local labor arrangements.

Professional installation also helps protect the appearance of the finished building. Accurate joint alignment, consistent module spacing, careful handling, and protection from surface damage are all necessary for a premium result.

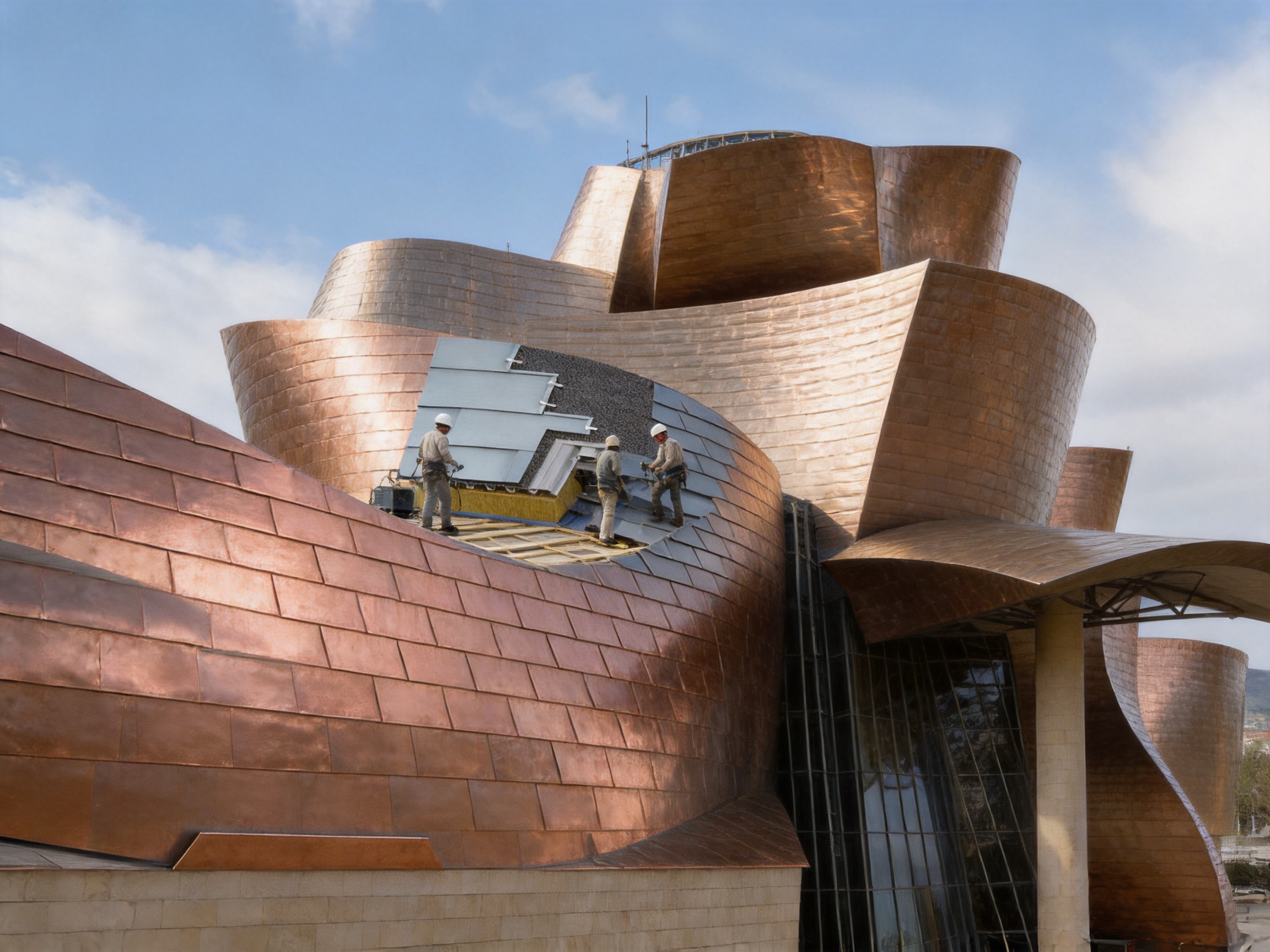

9. Applications in Cultural and Public Architecture

Rectangular metal roofing tiles are especially suitable for buildings where the exterior envelope contributes strongly to public identity. Museums and art galleries often use expressive forms to communicate creativity and cultural value. A modular metal surface can reinforce this architectural language while providing practical weather protection.

Science and technology museums may incorporate curved roofs, faceted walls, large entrances, and sculptural volumes. The ability of small metal units to follow complex forms allows the enclosure to support these ambitious geometries.

Theaters and performance venues frequently require dramatic rooflines, prominent facades, and carefully controlled material transitions. The product’s regular rectangular pattern can provide visual discipline across a building with otherwise complex forms.

Exhibition centers, public halls, transportation-related facilities, and landmark commercial buildings can also benefit from the system. In each case, the key value is the combination of architectural expression and enclosure performance.

9.1 Museums and art galleries

Museum architecture often demands a sophisticated balance between monumentality and detail. Large surfaces need to appear coherent from a distance, while close views should reveal material quality. Rectangular metal tiles provide both levels of perception: the overall facade reads as a unified form, and the smaller modules create texture when viewed more closely.

9.2 Science and technology museums

Technology-oriented buildings frequently use curved, angled, or dynamic forms. A flat-lock metal system with compact units can follow these shapes more effectively than a standard large-panel system. The clean lines of the rectangular pattern also support a contemporary and technically precise appearance.

9.3 Theaters and cultural venues

Theaters often become recognizable city landmarks. Their roofs and facades may be viewed from multiple directions, making surface consistency important. Concealed fastening avoids visual clutter and allows the building’s form, material, and lighting to remain the focus.

10. Sustainability and Long-Term Value

Metal roofing and cladding materials can contribute to sustainable construction when they are selected, installed, maintained, and eventually recovered responsibly. Aluminum, copper, and zinc-based materials have established recycling value, and durable metal envelopes can reduce the frequency of replacement compared with short-life exterior finishes.

Long service life is an important part of sustainability. A roof or facade that remains functional and visually acceptable for many years can reduce the need for demolition, replacement materials, transportation, and repeated installation work.

The compact modular format may also help with targeted repair. If a localized area is damaged, individual units may be replaceable without removing an entire large sheet. The feasibility of replacement depends on the exact installation arrangement, access conditions, and availability of matching material, but the modular principle can support maintainability.

Material efficiency should be evaluated during design. Customization and accurate drawing refinement can reduce unnecessary cutting and improve the use of raw materials. Proper packaging and delivery planning can further reduce damage and avoid avoidable replacement.

Sustainability also includes service performance. A well-designed roof that controls water, resists wind, and accommodates thermal movement helps protect the interior structure and finishes. This reduces the risk of premature repairs and contributes to the long-term value of the building.

11. Maintenance and Service Considerations

Metal roofing tiles generally require less routine maintenance than many organic exterior materials, but they should still be inspected periodically. Maintenance programs should include visual review of joints, flashings, drainage paths, penetrations, edges, and areas exposed to unusual impact or contamination.

Leaves, debris, and dirt should not be allowed to obstruct gutters, valleys, outlets, or other drainage components. Water that remains trapped against metal surfaces may increase staining or corrosion risks, particularly where incompatible materials are present.

Inspections should also look for loose or displaced units, damaged edges, blocked drainage, sealant deterioration, and changes around service penetrations. Early attention to minor defects can prevent more extensive repairs.

Cleaning methods should be compatible with the selected metal and finish. Harsh chemicals, abrasive tools, and incompatible runoff can damage surfaces or create staining. Maintenance personnel should follow the material manufacturer’s recommendations and use suitable access equipment.

Donghong provides after-sales maintenance services as part of its comprehensive support offering. This service can help building owners and contractors manage questions about product condition, repair procedures, replacement units, and long-term system care.

12. Why Choose Donghong as a Project Partner?

Suzhou Donghong Metal Materials Technology Co., Ltd. combines manufacturing resources with technical, design, construction, and service capabilities. This integrated approach is valuable for customers who need more than a standard catalog product.

The company was founded on February 21, 2019, and has expanded its product range and service network since its establishment. Its product portfolio includes standing seam aluminum-magnesium-manganese roofing systems, metal curtain wall systems, flat interlocking roofing and cladding systems, antique-style metal glazed tile systems, external wall insulation systems, and metal concealed-lock barrel tile roofing systems.

This range gives the company experience across multiple types of metal enclosure technology. It can therefore help customers compare systems and identify a solution that fits the project’s geometry, budget, performance requirements, and architectural goals.

Donghong also offers drawing refinement, consultation, material supply, construction and installation, and after-sales maintenance. These services can reduce the need for customers to coordinate several unrelated suppliers. A single technical partner can help maintain continuity from concept development to completed installation.

The company works with developers, architects, engineering companies, contractors, and material distributors. Its team includes experienced technical personnel, a professional design team, and staff familiar with profiled steel sheets, standing seam systems, wall materials, and project management.

The company’s stated philosophy emphasizes professionalism, passion, integrity, and pragmatism. Its operating values focus on dedication, teamwork, and innovation. These principles are relevant to complex metal enclosure projects, where successful results depend on communication, accuracy, and consistent follow-through.

13. Ordering and Specification Guidance

Customers considering rectangular metal roofing tiles should prepare basic project information before requesting a quotation. Useful information includes roof plans, elevations, sections, three-dimensional geometry, approximate quantities, location, preferred material, thickness, color or surface requirements, and intended application.

For curved or irregular projects, detailed drawings are especially important. The manufacturer may need to review the substrate, curvature, panel direction, edge conditions, openings, and transitions before confirming the final product configuration.

Material choice should be discussed in relation to the project environment. Coastal exposure, industrial pollution, rainfall, snow, temperature changes, and contact with adjacent metals may influence the specification. Local building regulations and structural requirements should also be incorporated into the design.

Customers should confirm whether they require material supply only, drawing support, fabrication, installation assistance, complete installation, or after-sales maintenance. Establishing the service scope early helps coordinate responsibilities and project schedules.

Samples and mock-ups may be useful for premium projects. A sample area can demonstrate the material appearance, module scale, joint alignment, edge detailing, and relationship with adjacent finishes. It also provides an opportunity to verify the installation method before full production.

14. Frequently Asked Questions

Q1: What is a rectangular metal roofing tile?

A rectangular metal roofing tile is a compact flat-lock metal panel with folded edges and concealed fastening components. The units interlock or overlap to form a continuous roof or facade surface.

Q2: What is the standard size?

The standard size is 220 millimeters by 300 millimeters. Customized sizes can be considered for projects with special design, structural, or geometric requirements.

Q3: Which materials are available?

The available materials are aluminum alloy, titanium-zinc alloy, and copper. Each material provides different characteristics in terms of weight, appearance, durability, aging, and cost.

Q4: Which thicknesses can be supplied?

Available thicknesses include 0.5 millimeter, 0.6 millimeter, 0.7 millimeter, 0.8 millimeter, 0.9 millimeter, 1.0 millimeter, and 1.2 millimeters. The appropriate thickness should be selected according to material, geometry, support spacing, loading, and project requirements.

Q5: Are the screws visible after installation?

The system is designed with concealed fastening, so screws and other fixing components are generally hidden beneath or within the interlocking tile arrangement. This produces a cleaner visible surface than exposed-fastener systems.

Q6: Can the product be used on curved roofs?

Yes. The small modular units can adapt to curved roofs and other complex shapes. Detailed project drawings and suitable installation planning are necessary to coordinate curvature, alignment, and transitions.

Q7: Can it be used on domes and spires?

Yes. The product is suitable for applications such as domes, spires, curved roofs, and twisted facades. Custom sizing and carefully developed installation drawings may be required for highly complex forms.

Q8: Is the product suitable for curtain walls?

Yes. The rectangular metal panel system can be used for curtain wall and facade applications as well as roofing. The supporting structure and facade detailing must be designed according to project requirements.

Q9: What buildings commonly use this product?

Typical applications include museums, art galleries, science and technology museums, theaters, exhibition centers, public buildings, premium commercial developments, and other large-scale architectural projects.

Q10: How does it compare with corrugated metal roofing?

Corrugated roofing typically has a pronounced linear profile and often uses visible fasteners. Rectangular metal roofing tiles provide a flatter, more modular, and more refined surface with concealed fastening and greater adaptability to complex forms.

Q11: Can the manufacturer assist with drawings?

Yes. Donghong provides drawing refinement and consultation. This support can help coordinate panel layouts, custom dimensions, edge conditions, and installation requirements.

Q12: Does the company provide installation support?

Yes. The company offers construction and installation services, as well as project management support, depending on the project scope and agreed contract arrangements.

Q13: What should be considered before selecting the product?

Important considerations include the building geometry, local climate, wind and snow loads, roof pitch, substrate, drainage, material compatibility, thickness, appearance, installation method, and applicable building regulations.

Q14: How can the product be maintained?

Maintenance should include periodic inspection of joints, edges, flashings, drainage paths, penetrations, and visible surfaces. Debris should be removed from drainage areas, and repairs should be carried out using compatible materials and methods.

Q15: Can the product be customized for large projects?

Yes. Customized dimensions and project-specific technical coordination are available. Customization should be discussed during the design and drawing stage to ensure that production and installation remain coordinated.

15. Conclusion

Rectangular metal roofing tiles provide a refined alternative to conventional roofing sheets and exposed-fastener panels. Their concealed fastening, folded-edge interlocking design, compact dimensions, and available material options create a system that combines visual quality with practical enclosure performance.

The product is particularly valuable for buildings with complex forms or strong architectural ambitions. Small rectangular units can follow curves, domes, cones, spires, and twisted facades more effectively than many large-format systems. At the same time, the regular pattern creates a modern, orderly, and recognizable surface.

With aluminum alloy, titanium-zinc alloy, and copper options, along with thicknesses from 0.5 millimeter to 1.2 millimeters, the system can be adapted to a wide range of design and performance requirements. Its applications extend from roofing to curtain walls and from standard planes to highly expressive public architecture.

Suzhou Donghong Metal Materials Technology Co., Ltd. strengthens the product offering through drawing refinement, manufacturing capacity, technical consultation, installation support, project management, material supply, and after-sales service. Its production area, experienced workforce, international supply experience, and broader metal enclosure expertise allow it to support projects from early design through long-term maintenance.

For architects, developers, contractors, and distributors seeking a metal roofing or cladding system with a clean appearance, strong modular character, and flexibility for complex geometry, rectangular metal roofing tiles provide a practical and visually distinctive solution.

References

1. Suzhou Donghong Metal Materials Technology Co., Ltd. Product Specification Information for Rectangular Metal Roofing Tiles.

2. Suzhou Donghong Metal Materials Technology Co., Ltd. Company Profile and Manufacturing Capability Statement.

3. Architectural Metal Roofing and Cladding Design Principles, technical reference materials for folded-edge and concealed-fastening systems.

4. General Building Envelope Practice, guidance on waterproofing, flashing, drainage, thermal movement, and facade coordination.

5. Metal Construction Materials Reference, comparative information on aluminum alloy, titanium-zinc alloy, copper, and coated metal systems.

Product: Rectangular Metal Roofing Tile
