240 Model Fish-Scale Metal Tiles: Lightweight European Character, Reliable Roof Performance, and Flexible Architectural Design

The 240 Model Fish-Scale Metal Tiles are a distinctive metal roofing solution designed for projects that require a refined European appearance, reliable weather protection, low structural weight, and flexible installation. With their long, narrow proportions and rounded front edge, these tiles create a slender, layered profile that recalls German and European old-style architecture. Their elegant vertical texture gives roofs, façades, curtain walls, storefronts, and cornice details a recognizable architectural identity.

Unlike conventional large-format roofing sheets, the 240 Model is formed from small individual panels. This format enables designers and installers to create a carefully scaled surface with repeated overlapping joints and a strong visual rhythm. The small sections can also be arranged on curved, conical, wavy, and other irregular roof forms that may be difficult to cover with rigid, oversized panels.

At the same time, the product provides the practical advantages associated with modern metal roofing. Its self-weight is approximately 3–5 kg per square meter, which is only about one-sixth the weight of conventional ceramic tiles. The reduced load can help make the product suitable for steel-frame buildings, timber structures, renovation projects, and older buildings where the existing structure may not be able to support a heavy roof covering.

The product is available in aluminum alloy, titanium-zinc alloy, and copper. Thickness options range from 0.5 mm to 1.2 mm, allowing the material selection to be adapted to project requirements, architectural objectives, and budget considerations. Through professional design support, drawing refinement, material supply, installation, and after-sales maintenance, the manufacturer provides more than an individual roofing component. It offers an integrated approach to metal roofing and architectural enclosure.

240 Model Fish-scale metal tiles

1. Product Overview

The 240 Model Fish-Scale Metal Tiles are named for their visually overlapping arrangement, which resembles the layered appearance of fish scales. Each tile has a product size of 240 mm × 380 mm. Compared with shorter or wider fish-scale formats, this model is longer and narrower, giving the completed roof a more vertical and elongated texture.

The rounded front edge softens the appearance of the roof plane. Rather than producing a sharp, industrial grid, the repeated curved edges form a graceful pattern that can complement historical, classical, European, and villa-style architecture. The profile is particularly suitable for projects where the roof is intended to be a major visual feature rather than a concealed functional layer.

The product is categorized as a fish-scale metal tile, but its potential use extends beyond conventional roof covering. The same design language can be applied to exterior façades, curtain walls, storefronts, and cornice decorations. This makes it possible to coordinate roof and wall surfaces using a consistent material vocabulary.

The tile can be manufactured in several durable metal options. Aluminum alloy offers a lightweight solution for projects where minimizing dead load is important. Titanium-zinc alloy is appropriate for architectural applications that value a distinctive metal appearance and long-term weathering characteristics. Copper provides a premium architectural finish for projects seeking a traditional, high-value, or historically expressive material palette.

The available thicknesses are 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm. This range allows the specification to be matched to the intended application. A designer may select a lighter option for a suitable low-load façade or renovation application, while a heavier specification may be considered where additional material rigidity or a more substantial architectural expression is desired.

2. Architectural Appearance and European Design Character

The defining strength of the 240 Model is its appearance. The long, slender geometry introduces a pronounced vertical rhythm across the roof surface. This rhythm can make a roof look taller, more elegant, and more finely detailed than a conventional broad metal sheet.

Its rounded front edge contributes to a classic profile. The curved edge is repeated across each course, producing a layered pattern that resembles traditional small-format roofing while using modern metal materials. This combination of traditional visual character and contemporary construction technology makes the product suitable for new buildings inspired by historic forms as well as for renovation projects involving existing European-style architecture.

German-style and European old-style houses often depend on proportion, texture, and detail. A roof covering with a broad, repetitive industrial pattern may not provide the desired level of refinement. The 240 Model offers a smaller-scale surface pattern, helping the roof participate in the overall architectural composition.

For villas, the product can emphasize roof geometry, dormers, eaves, towers, and other distinctive features. On an entrance canopy or storefront, the same tiles can serve as an architectural highlight. On a curtain wall or decorative façade, they can create a textured envelope with depth and shadow. The result is a building with a stronger visual identity and a greater degree of recognition.

The product is also appropriate for buildings that combine new construction with historical references. Architects can use modern metal materials while retaining a roof pattern associated with traditional European buildings. This may be useful for cultural facilities, hospitality projects, themed commercial buildings, residential villas, heritage-style developments, and public buildings requiring a memorable exterior.

2.1 Slender Proportions and Visual Scale

At 240 mm × 380 mm, the panel format balances small-scale detail with practical repeatability. Its elongated proportions distinguish it from compact decorative tiles and from large-format sheets. The surface can therefore appear detailed without becoming visually crowded.

The narrow width helps create a series of vertical lines, while the 380 mm length provides sufficient overlap between courses. When installed in a planned arrangement, the tiles produce an orderly pattern with a strong sense of depth. The appearance can be adjusted through layout, orientation, color selection, material choice, and detailing around roof edges and transitions.

2.2 A Suitable Choice for Distinctive Roofs

Many roofing products are selected primarily for economy and installation speed. Those factors are important, but some buildings require a more expressive solution. The 240 Model is intended for projects where the roof is part of the architectural identity. It can help create a roof that looks refined from a distance and remains detailed when viewed close to the building.

Because the tiles are relatively small and individually arranged, they can follow more complex roof geometries. This is a significant advantage over rigid large-format panels when the design includes curved eaves, conical towers, rounded roof sections, or irregular transitions.

3. Layered Waterproofing Performance

The 240 Model uses a stacked and interlaced arrangement. Each tile overlaps the adjacent tile and the course below it, creating multiple layers across the roof surface. This configuration forms a series of potential water-shedding paths and helps create a multi-layered structural waterproofing system.

The extremely long joint surface is one of the product’s notable functional characteristics. A properly designed and installed joint does more than connect two pieces visually. It helps direct water over the face of the tile and away from the supporting roof structure. The layered arrangement also limits the likelihood that water will travel directly through a single uninterrupted seam.

This feature can be particularly useful on lower-pitched roof areas, where water may remain on the surface for longer than it would on a steep roof. The overlapping pattern provides additional protection in these conditions. Nevertheless, the final waterproofing performance depends on the complete roof system, including substrate preparation, underlayment, flashing, drainage design, fasteners, edge treatment, penetrations, and installation quality.

As with any roof covering, the product should be installed according to project-specific technical requirements. Roof slope, local rainfall, wind exposure, snow conditions, salt exposure, thermal movement, and building codes should be considered during design. The tile pattern can contribute to weather resistance, but it must work together with the rest of the roof assembly.

3.1 Protection Through Overlap

Traditional small-format roofing systems often use overlapping pieces to provide redundancy. The 240 Model maintains this principle while using corrosion-resistant metal materials and modern fabrication methods. The repeated overlap creates a surface with multiple visible and functional layers.

In practical terms, water encounters a sequence of tile edges and overlaps rather than a single exposed joint. This arrangement can help reduce direct water penetration and support reliable drainage when the tiles are aligned correctly.

3.2 Suitability for Low-Pitched Applications

The product advantages include improved suitability for low-pitched roof areas compared with certain roofing formats that rely on a steep slope for rapid drainage. Its overlapping structure is intended to make low-pitched roof surfaces less prone to leakage. However, low-pitched applications require careful engineering because drainage, underlayment, snow accumulation, wind-driven rain, and detailing become more important as the slope decreases.

Professional consultation should be used to confirm the appropriate pitch, installation method, supporting structure, and waterproofing layers for each project. The manufacturer’s design and technical teams can assist with drawing refinement and project consultation so that the material is integrated into a complete enclosure solution.

4. Lightweight Construction and Structural Benefits

One of the clearest advantages of the 240 Model is its low self-weight. The product weighs approximately 3–5 kg per square meter, which is only about one-sixth the weight of ceramic tiles. This difference can have an important effect on the roof structure and the overall building design.

A lighter roof covering may reduce the permanent load imposed on rafters, purlins, trusses, walls, and foundations. It can also simplify certain renovation projects where the existing structural system has limited reserve capacity. For older buildings, replacing a heavy roof with a lightweight metal system may help preserve the original structure while improving the roof’s appearance and weather protection.

The low weight is also useful in steel-frame and timber buildings. It may allow designers to focus structural resources on other elements of the building while reducing the handling burden during installation. Lower unit weight can make transportation, lifting, positioning, and on-site movement more manageable, particularly where access is restricted.

Weight reduction should not be interpreted as reduced quality. The available metal materials and thickness options allow the product to be specified for different performance requirements. The final structural design must still consider wind uplift, fixing patterns, substrate conditions, thermal movement, and local engineering standards.

4.1 Renovation of Older Buildings

Renovation projects often involve a difficult balance between visual improvement and structural limitations. A traditional ceramic roof may be too heavy for an older structure, while a large industrial metal sheet may be inconsistent with the building’s architectural style. The 240 Model addresses both concerns by combining a lightweight metal construction with a classic, small-format appearance.

It can be considered for old-style houses, villas, heritage-inspired buildings, and restoration-related projects where maintaining a traditional roof image is important. The exact suitability of the product for protected heritage structures should be evaluated with the relevant conservation authorities and project professionals.

4.2 Reduced Handling Burden

Small metal panels are easier to distribute across a work area than heavy ceramic units. Although the installation still requires careful planning and skilled labor, the material’s low weight can support more efficient site logistics. This may be especially valuable for steep, restricted, or difficult-to-access roofs.

The individual tile format also allows installers to work progressively across the roof. Damaged or modified sections can be addressed at a local level rather than requiring the removal of large continuous sheets. The final method will depend on the project’s installation system and technical documentation.

5. Material Options for Different Architectural Requirements

The 240 Model is available in aluminum alloy, titanium-zinc alloy, and copper. Offering several metal choices allows architects, contractors, and building owners to select a material according to appearance, weight, durability objectives, environmental exposure, and project budget.

5.1 Aluminum Alloy

Aluminum alloy is a practical choice where low weight and corrosion resistance are important. It supports the lightweight character of the product and can be suitable for roof renovation, steel-frame construction, timber structures, façades, and decorative applications. Its relatively low density can help reduce transportation and handling demands.

For coastal or humid environments, the complete system should be evaluated for salt-fog exposure, fastener compatibility, drainage, and contact with dissimilar metals. Correct detailing and protective surface treatment are essential to long-term performance.

5.2 Titanium-Zinc Alloy

Titanium-zinc alloy is associated with high-end architectural metalwork and distinctive natural metal surfaces. It can provide a sophisticated appearance suitable for villas, public buildings, cultural projects, and European-style developments. The material is particularly attractive when the roof is intended to develop a refined architectural character over time.

As with all metal roof systems, designers should account for thermal movement, material compatibility, ventilation, joints, and installation conditions. The appropriate thickness and detailing should be selected through project-specific technical review.

5.3 Copper

Copper offers a premium appearance and a long architectural tradition. It can be used where the design calls for a noble, recognizable material with a strong connection to classical and historic building forms. Copper fish-scale tiles can be particularly effective on towers, domes, ornate roof sections, entrance features, and high-visibility façades.

Copper requires careful consideration of runoff, adjacent materials, fasteners, and contact with other metals. The design team should evaluate potential galvanic interaction and staining around drainage paths and transitions.

5.4 Thickness Selection

The thickness range from 0.5 mm to 1.2 mm provides flexibility for different applications. The correct specification should be selected according to engineering requirements rather than appearance alone. Wind conditions, support spacing, tile layout, roof geometry, handling requirements, and local standards should all be considered.

Parameter	Available Specification	Project Consideration
Product size	240 mm × 380 mm	Suitable for a detailed, elongated fish-scale pattern
Product thickness	0.5 mm / 0.6 mm / 0.7 mm / 0.8 mm / 0.9 mm / 1.0 mm / 1.2 mm	Select according to structural, environmental, and design requirements
Product material	Aluminum alloy	Lightweight construction and versatile architectural use
Product material	Titanium-zinc alloy	Premium architectural appearance and metal façade applications
Product material	Copper	Traditional, high-value, and expressive architectural projects
Approximate self-weight	3–5 kg per square meter	Useful for steel frames, timber structures, and renovation projects

6. Corrosion Resistance and Surface Durability

The product uses metallic materials designed for long-term architectural applications. Its advantages include resistance to corrosion and salt fog, together with a surface weather-resistant coating that is intended to resist fading. These features are important for roof coverings that remain exposed to sunlight, rain, humidity, airborne pollutants, and changing temperatures.

A weather-resistant surface helps preserve the intended architectural appearance over time. This is especially valuable for European-style buildings, villas, storefronts, and façades where color and surface consistency contribute directly to the building’s identity.

However, durability depends on more than the panel material alone. Good performance requires appropriate storage, handling, cutting, fastening, flashing, cleaning, and maintenance. The supporting structure must also be designed to prevent standing water and uncontrolled contact between incompatible materials.

Coastal projects should receive particular attention. Salt fog can accelerate corrosion on exposed metal surfaces and fasteners. The choice of alloy, coating, accessories, and fixing method should be reviewed for the local environment. Drainage paths should be designed to prevent concentrated runoff from one metal surface onto another incompatible material.

6.1 Color Stability

For architectural roofing, color stability is an important part of product value. A surface that fades unevenly can reduce the visual quality of a roof and create maintenance concerns. The 240 Model incorporates a weather-resistant surface coating intended to support long-term color retention.

Color selection should be coordinated with the building façade, trim, windows, doors, masonry, and surrounding landscape. On a fish-scale surface, changing light conditions can produce subtle highlights and shadows across the rounded edges. A carefully selected finish can emphasize this layered texture.

6.2 Maintenance Considerations

Metal roofs generally benefit from periodic inspection rather than neglect. Maintenance teams should check roof edges, valleys, ridges, penetrations, flashing, fasteners, drainage components, and areas affected by construction traffic. Leaves, dirt, and debris should be removed where they can retain moisture or obstruct drainage.

Any cleaning or repair procedure should follow the recommendations for the selected alloy and surface finish. Abrasive tools, incompatible chemicals, and unapproved touch-up materials may affect the coating or create premature surface deterioration.

7. Flexible Installation on Complex Roof Geometry

The small sections of the 240 Model can be flexibly fitted to irregular-shaped roofs, including curved, conical, and wavy forms. This flexibility is one of the product’s strongest advantages over many large-format roofing sheets.

Large sheets are efficient on simple planes, but they can require extensive cutting, bending, or custom fabrication when used on complex geometry. Excessive modification may affect visual consistency, material efficiency, and installation time. The smaller fish-scale format can distribute geometric adjustments across many individual pieces, allowing the surface to follow the design more naturally.

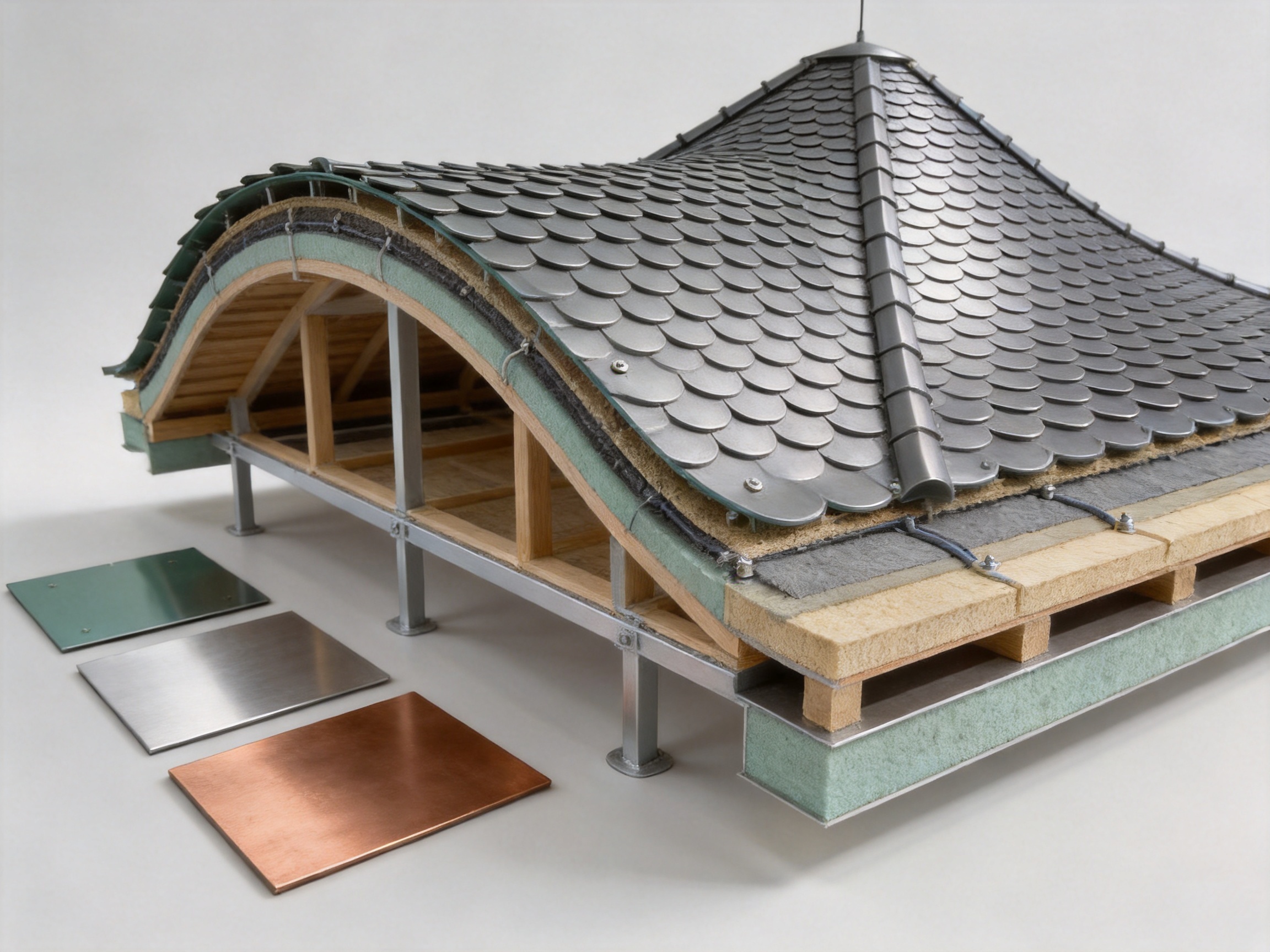

7.1 Curved Roofs

Curved roofs often require a gradual change in panel position and orientation. Small-format tiles can accommodate this transition through controlled placement and overlapping. They can help maintain a consistent visual pattern while following the curve from one section to another.

The exact installation method depends on the radius, support system, tile material, thickness, and required overlap. Detailed shop drawings should be prepared before production and installation so that the tile courses, edges, and transitions are clearly defined.

7.2 Conical and Tower Forms

Conical roofs and towers are visually important but technically demanding. The width of the roof surface changes continuously toward the apex, making standardized large panels difficult to arrange without complex waste or irregular joints. The 240 Model’s individual sections can be adapted to this changing geometry.

Such applications require careful planning around the apex, eaves, openings, and structural support. The manufacturer’s drawing refinement and design consultation capabilities can help coordinate the pattern and material quantities before fabrication.

7.3 Wavy and Decorative Roofs

Wavy roofs, curved cornices, and decorative architectural elements benefit from a material that can be divided into manageable sections. The fish-scale pattern can reinforce the movement of the form, creating a surface that follows the building’s geometry instead of visually flattening it.

This makes the product suitable for projects where roof and façade design are intended to express motion, rhythm, heritage, or craftsmanship. It also creates opportunities for coordinated details around eaves, gables, arches, and ornamental transitions.

8. Uses Beyond Conventional Roofing

Although the product is primarily a roof tile, its architectural potential extends to several building-envelope applications. It can be used for exterior façades, curtain walls, storefronts, and cornice decorations. This broad application range helps designers maintain material continuity across multiple parts of a project.

8.1 Exterior Façades

On a façade, fish-scale metal tiles create depth through overlapping edges and changing shadows. The surface can serve as a complete cladding system or as an accent around entrances, upper-level features, gables, and architectural projections.

A façade application should be designed with appropriate drainage, ventilation, support framing, fire performance, movement joints, and access for maintenance. The tile pattern can be coordinated with openings and building corners through detailed drawings.

8.2 Curtain Walls

The product can be incorporated into visually expressive curtain wall concepts. Its small-format arrangement may be used to create a textured outer layer or a decorative screen in front of a more conventional enclosure. This approach can provide solar modulation, depth, and a distinctive material expression, subject to the requirements of the complete curtain wall system.

8.3 Storefronts and Commercial Buildings

Storefronts benefit from strong visual recognition. Fish-scale metal tiles can be used around a shop entrance, on a canopy, or across a feature wall to make the building more memorable. The European retro appearance can complement cafés, restaurants, boutique hotels, specialty stores, cultural venues, and themed commercial developments.

8.4 Cornices and Architectural Details

Cornice decorations and roof-edge features often require a material that can be cut and coordinated with irregular shapes. The 240 Model can extend the roof’s visual language into eaves, gables, parapets, and decorative bands. This helps avoid an abrupt transition between the main roof and its architectural details.

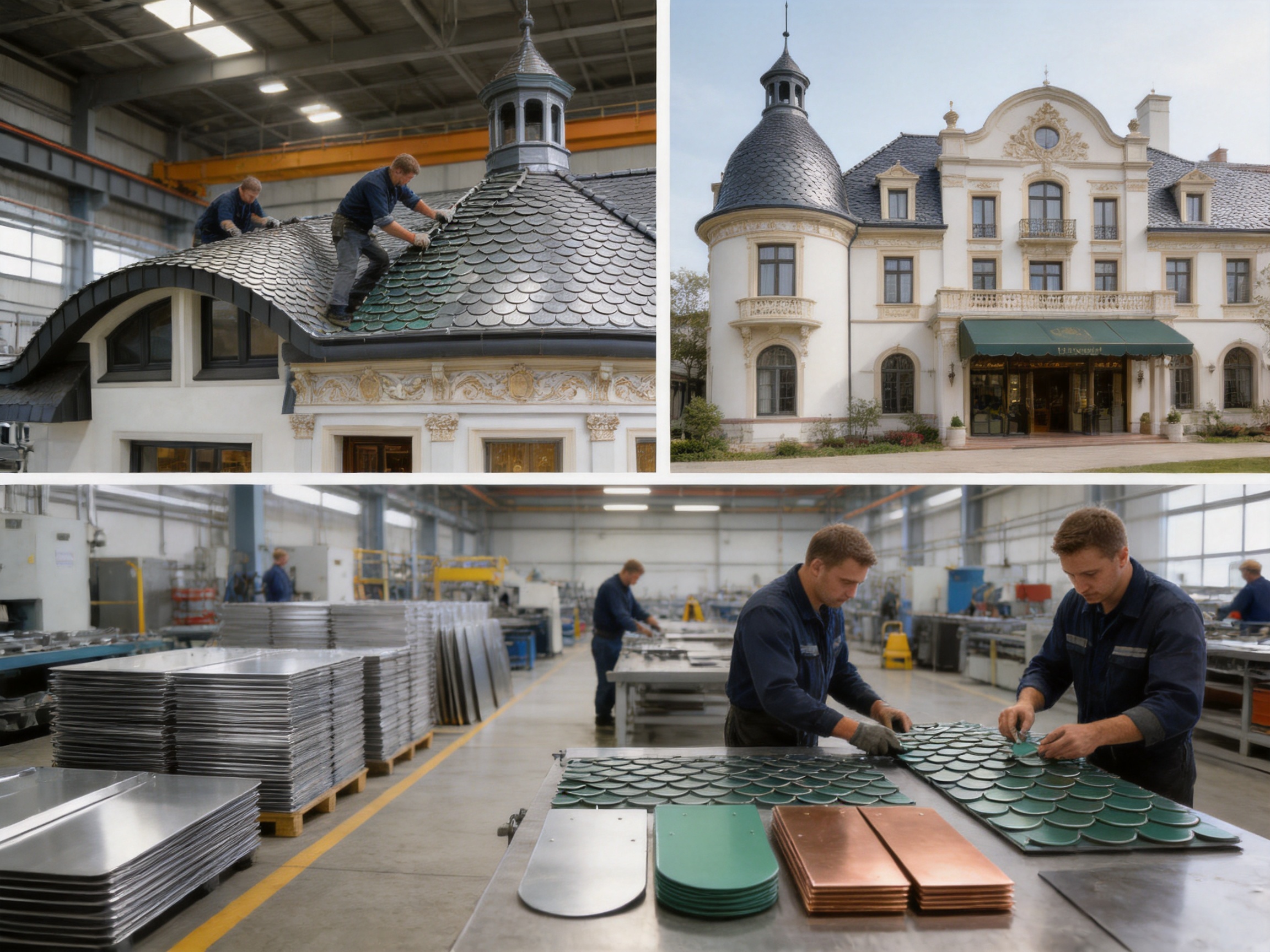

9. Manufacturing Capability and Quality-Oriented Production

The manufacturer behind the 240 Model is Suzhou Donghong Metal Materials Technology Co., Ltd., located in Taicang, Suzhou, near Shanghai, China. The company specializes in the research, development, manufacturing, processing, sales, and installation of metal roofing and wall materials.

Its production and service capabilities cover a broad range of metal enclosure products, including standing seam aluminum-magnesium-manganese roofing systems, metal curtain wall systems, flat interlocking roofing and cladding systems, antique-style metal glazed tile systems, external wall insulation systems, and metal concealed-lock barrel tile roofing systems.

This wider product background is relevant to the 240 Model because a fish-scale roof does not exist in isolation. It must connect with flashing, walls, curtain walls, structural supports, insulation, drainage, openings, and other enclosure components. A manufacturer with experience across multiple metal roofing and wall systems can provide more coordinated project support than a supplier focused only on a single decorative panel.

9.1 Integrated Research and Development

The company combines research and development with manufacturing, design, construction, and after-sales services. This integrated model supports communication between the design office, production team, and installation personnel. It can reduce the risk of disconnects between a drawing and the finished roof.

For customized or geometrically complex projects, early design coordination is particularly important. The manufacturer can review the proposed roof shape, tile arrangement, material, thickness, details, and installation requirements before production begins.

9.2 Drawing Refinement and Technical Consultation

The company provides drawing refinement and consultation services. These services are valuable when the project includes curved roofs, conical forms, irregular edges, transitions between roof and façade, or custom decorative features.

Drawing refinement may include the development of more detailed production information from an architectural concept. The objective is to translate design intent into practical panel layouts, dimensions, joints, support conditions, and installation sequences. Clear drawings also support more accurate material estimates and reduce avoidable site modifications.

9.3 Production Area and Capacity

The company has an existing production area of 10,000 square meters and a monthly production capacity of more than 100,000 units. This capacity is supported by more than 200 experienced workers. Such resources can be important for projects that require repeatable production, scheduled deliveries, customized components, or coordinated supply across several building areas.

Production capacity alone does not guarantee project quality, but it provides a foundation for organized manufacturing and delivery. A project should still confirm technical specifications, inspection procedures, packaging, lead times, sample approvals, and quality documentation before placing an order.

9.4 Experience in International Supply

The company exports to more than 100 countries. International project experience can help a supplier understand the need for clear technical communication, packaging suited to long-distance transport, coordinated documentation, and adaptation to different architectural and construction environments.

For overseas buyers, product selection should include discussion of applicable local standards, customs requirements, climate conditions, installation practices, and responsibilities between the supplier and local contractor.

10. Manufacturing Process and Project Support

The manufacturing process for a high-quality fish-scale metal tile involves more than cutting metal into repeated shapes. It requires control of material selection, dimensions, forming, surface treatment, inspection, packaging, and project coordination.

10.1 Material Preparation

Production begins with the selection and preparation of the specified metal alloy and thickness. The material should correspond to the approved project specification. Careful material handling helps prevent surface damage before forming and finishing.

For projects using aluminum alloy, titanium-zinc alloy, or copper, the production team should maintain clear identification throughout processing. This is especially important when a factory is producing multiple material types or finishes at the same time.

10.2 Precision Forming

The 240 Model’s long, narrow shape and rounded front edge require consistent forming. Repeated components should maintain uniform dimensions so that the installed courses align correctly and the rounded edges create a continuous visual pattern.

Consistency is important both functionally and aesthetically. Variations in width, length, curvature, or edge shape can affect overlap, drainage, appearance, and installation efficiency. Experienced workers and appropriate production equipment help support repeatable results.

10.3 Surface Treatment

Surface treatment is selected according to the material and the required architectural finish. The weather-resistant coating helps protect the surface and supports color stability. The process should be controlled so that the finished tiles have consistent coverage and appearance.

Before shipment, finished products should be checked for visible defects, coating irregularities, edge damage, dimensional variation, and packaging security. For high-visibility projects, sample approval can help establish the expected appearance before full production.

10.4 Packaging and Delivery

Small-format metal tiles must be packaged to reduce movement, abrasion, bending, and edge damage during transportation. Packaging should also keep different finishes, sizes, or material batches clearly identified for installation.

Delivery planning is an important part of the manufacturing service. The project team should coordinate production schedules with site readiness, structural completion, storage space, lifting arrangements, and installation sequencing. This is especially important for large projects or buildings with several roof sections.

10.5 Installation and After-Sales Support

The company offers construction and installation services as well as after-sales maintenance. Access to installation support can be valuable for complex roofs where visual alignment and waterproofing depend on skilled execution.

After-sales service may include inspection, maintenance advice, replacement coordination, and technical support. Building owners should establish a maintenance plan at handover so that roof edges, drainage, flashings, penetrations, and visible surface conditions can be reviewed regularly.

11. Advantages Compared with Conventional and Competing Roofing Formats

The 240 Model should be evaluated according to the needs of the project, but it offers several clear advantages compared with heavy ceramic tiles, broad industrial roofing sheets, and less flexible decorative panels.

11.1 Compared with Ceramic Tiles

The most obvious difference is weight. At approximately 3–5 kg per square meter, the 240 Model is substantially lighter than ceramic tile roofing. This can reduce roof dead load and support applications in renovation, timber, and lightweight steel structures.

The metal format can also provide greater flexibility around curved and irregular roof shapes. Ceramic tiles may require extensive cutting or specialized pieces for conical and wavy forms, while smaller metal sections can often be arranged more progressively across the geometry.

Metal materials also offer corrosion resistance and weather-resistant surface treatments. Ceramic tiles remain a valuable roofing material, but the 240 Model provides a different combination of low weight, architectural detail, and material versatility.

11.2 Compared with Large-Format Metal Sheets

Large-format metal sheets are efficient for broad, simple roof planes, but they may look too industrial for a European-style villa, heritage-inspired building, or decorative commercial façade. The 240 Model creates a more detailed, layered, and traditional appearance.

Its small sections also provide greater flexibility for complex geometries and localized replacement. A broad sheet may require significant removal to repair a damaged area, whereas an individual tile format can support more localized maintenance, depending on the installation system.

11.3 Compared with Shorter or Wider Fish-Scale Tiles

The 240 Model has a longer and narrower shape than more compact fish-scale formats. This gives it a stronger vertical texture and a more slender appearance. It is particularly appropriate when the design aims to reproduce the proportions associated with German or European old-style houses.

Shorter or wider tiles may create a denser or more decorative pattern. The 240 Model is better suited to projects seeking an elegant, elongated, and classic visual effect.

11.4 Compared with Single-Purpose Decorative Panels

Some decorative panels are designed mainly for appearance and may have limited integration with wider roof and wall systems. The 240 Model is supported by a manufacturer with experience in roofing, cladding, curtain walls, insulation systems, concealed-lock systems, and installation services.

This broader capability can simplify coordination when a project contains several types of metal enclosure. It also gives the buyer access to design consultation, material supply, construction, and after-sales maintenance through one experienced specialist.

12. Design and Specification Guidance

Successful use of the 240 Model begins with a clear design brief. The project team should identify whether the product will be used for roofing, façade cladding, a curtain wall feature, a storefront, a cornice, or a combination of applications.

The desired architectural appearance should be discussed at the beginning. The long, narrow tile format produces a vertical and elegant rhythm, while material and finish influence the color, reflectivity, and character of the completed surface.

Structural and environmental conditions should then be reviewed. Important considerations include roof pitch, wind exposure, snow or rainfall, coastal conditions, substrate material, support spacing, thermal movement, drainage, penetrations, edge details, and access for maintenance.

For complex forms, three-dimensional coordination may be useful. Curved and conical roofs should be broken into defined zones, with the layout and transition between zones developed before fabrication. Eave, ridge, valley, opening, and wall-to-roof details should be shown clearly in project drawings.

Material compatibility is also important. The selected metal should be compatible with fasteners, flashings, gutters, support framing, membranes, and adjacent cladding. Copper, titanium-zinc alloy, and aluminum alloy have different characteristics, so the complete assembly should be reviewed rather than specifying the tile in isolation.

13. Sustainability and Long-Term Building Value

The product supports sustainable building objectives through lightweight construction, durable metal materials, and long service potential when correctly designed and maintained. A lightweight roof can reduce material demand in supporting structures and may be beneficial in renovation projects where reuse of the existing building is preferred over complete reconstruction.

Durable metals such as aluminum alloy, titanium-zinc alloy, and copper can contribute to long-term building value. Their architectural appearance can remain relevant for many years, while their resistance to weather exposure helps reduce the frequency of replacement.

Sustainability should be considered across the entire life cycle. Responsible design includes efficient material planning, reduction of cutting waste, appropriate packaging, repairability, maintenance access, and end-of-life material recovery. Metal roofing systems may also offer recycling potential, depending on the alloy, coating, contamination, and local recycling infrastructure.

The company’s stated philosophy combines architectural aesthetics, environmental responsibility, and lasting quality. Its use of aluminum-magnesium-manganese and titanium-zinc alloy products supports the development of durable metal enclosure systems for modern buildings.

14. Why Manufacturer Capability Matters

For a specialized product such as the 240 Model, manufacturing expertise is closely connected to project success. The finished appearance depends on dimensional consistency, accurate forming, correct overlap, clean edges, surface quality, and coordinated installation.

A supplier that only provides raw panels may leave the project team responsible for solving difficult details independently. By contrast, a manufacturer with technical personnel, a professional design team, drawing refinement capabilities, production resources, and construction experience can participate in more stages of the project.

Suzhou Donghong Metal Materials Technology Co., Ltd. was founded on February 21, 2019. Since its establishment, it has expanded its product range and service network while integrating research and development, production, design, construction, and after-sales services.

The company works with developers, architects, engineering companies, and material distributors. Its experience in profiled steel sheets, standing seam metal roofing, wall systems, and on-site construction project management provides a foundation for handling projects that require both product supply and technical coordination.

The company’s stated values emphasize professionalism, passion, integrity, pragmatism, dedication, teamwork, and innovation. For buyers, these principles should be reflected in practical project procedures, including responsive communication, accurate drawings, transparent specifications, controlled production, reliable delivery, and clear after-sales support.

15. Recommended Applications

The 240 Model is particularly well suited to European and German-style retro architecture. Recommended applications include villas, old-style houses, heritage-inspired buildings, boutique hotels, cultural facilities, restaurants, specialty storefronts, entrance canopies, decorative façades, curtain wall features, and cornice elements.

It can be used where the design requires an elegant, slender roof profile rather than a broad industrial sheet appearance. It is also valuable where the building structure benefits from reduced roof weight or where the roof geometry includes curves, cones, waves, or irregular transitions.

For commercial and public buildings, the product can help create a recognizable identity. The repeated fish-scale pattern provides a strong visual signature that can distinguish a building from neighboring structures. For residential buildings, it can combine classical character with modern metal roofing performance.

For renovation work, the lightweight construction and small-format layout are especially attractive. They may help reduce structural intervention and allow detailed treatment around existing architectural features. A full survey of the existing building should always be completed before final specification.

16. Frequently Asked Questions

What are 240 Model Fish-Scale Metal Tiles?

They are small-format metal roofing and cladding tiles with a product size of 240 mm × 380 mm. The tiles are longer and narrower than many conventional fish-scale formats and have a rounded front edge that creates a slender European architectural appearance.

What materials are available?

The product is available in aluminum alloy, titanium-zinc alloy, and copper. The best choice depends on the project’s appearance, environmental exposure, structural requirements, material compatibility, and budget.

What thicknesses can be selected?

Available thicknesses are 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, and 1.2 mm. The correct thickness should be selected according to the roof design, support conditions, wind exposure, and applicable technical standards.

How heavy is the product?

The self-weight is approximately 3–5 kg per square meter. This is about one-sixth the weight of ceramic tiles and can make the product suitable for steel-frame buildings, timber structures, and renovation of older buildings.

Can the tiles be used on curved roofs?

Yes. The small individual sections can be flexibly fitted to curved, conical, wavy, and other irregular-shaped roofs. Complex projects require detailed layout drawings and professional installation to ensure proper alignment, overlap, drainage, and edge treatment.

Do the tiles provide waterproofing protection?

The stacked and interlaced arrangement creates multiple overlapping layers and a long joint surface, forming a multi-layered structural waterproofing system. Complete waterproofing also depends on the roof pitch, underlayment, flashing, drainage, fasteners, penetrations, and installation quality.

Are the tiles suitable for low-pitched roofs?

The overlapping structure is intended to make low-pitched roofs less prone to leakage than systems with less layered protection. The exact minimum pitch and roof assembly should be confirmed through project-specific technical consultation and local code review.

Can the product be used on façades?

Yes. The product can be used for exterior façades, curtain walls, storefronts, and cornice decorations in addition to conventional roofing. Façade use requires appropriate support, drainage, ventilation, fire, movement, and maintenance design.

What architectural styles suit this product?

It is especially suitable for German-style and European old-style buildings, villas, heritage-inspired architecture, classical commercial buildings, boutique hospitality projects, and decorative public architecture. It can also be used as an accent in contemporary designs.

What support does the manufacturer provide?

The manufacturer provides drawing refinement and consultation, material supply, construction and installation, and after-sales maintenance services. It also has experience in metal roofing, curtain walls, cladding, insulation systems, and on-site construction management.

Where is the manufacturer located?

Suzhou Donghong Metal Materials Technology Co., Ltd. is located at No. 16 Hongyun Road, Fuqiao Town, Taicang City, Suzhou, Jiangsu Province, China, near Shanghai.

How should buyers begin a project inquiry?

Buyers should provide architectural drawings, roof dimensions, intended application, material preference, thickness requirement, project location, environmental conditions, expected quantity, and desired delivery schedule. These details allow the technical team to recommend a suitable configuration and prepare more accurate drawings and quotations.

17. Conclusion

The 240 Model Fish-Scale Metal Tiles combine a distinctive European appearance with the practical benefits of lightweight metal roofing. Their long, narrow proportions and rounded front edge create a graceful, classic surface with strong vertical texture. The format is especially appropriate for German and European old-style houses, villas, historic-inspired projects, storefronts, façades, curtain walls, and cornice details.

The product’s approximate self-weight of 3–5 kg per square meter provides a major advantage over ceramic tiles. Its reduced structural load can support steel-frame, timber, and renovation applications. The overlapping installation creates multiple waterproofing layers, while the small sections can follow curved, conical, wavy, and irregular roof forms.

Material options include aluminum alloy, titanium-zinc alloy, and copper, with thicknesses from 0.5 mm to 1.2 mm. These choices allow the product to be adapted to different design objectives and environmental conditions. Corrosion resistance, salt-fog resistance, and a weather-resistant surface coating further support its use in demanding architectural environments.

Equally important is the manufacturer’s integrated capability. Suzhou Donghong Metal Materials Technology Co., Ltd. combines research and development, production, drawing refinement, material supply, installation, and after-sales service. With a 10,000-square-meter production area, monthly capacity exceeding 100,000 units, more than 200 experienced workers, and exports to over 100 countries, the company is positioned to support both standard and customized metal enclosure projects.

For architects, developers, contractors, and distributors seeking a roof with a recognizable historical character, reduced weight, flexible geometry, and modern metal performance, the 240 Model offers a balanced and adaptable solution. Its greatest value lies in bringing together architectural expression and practical construction performance in one coordinated roofing and cladding system.

References

1. Product specification information for the 240 Model Fish-Scale Metal Tiles, including product size, available thicknesses, material options, approximate self-weight, and application scenarios.

2. Manufacturer information for Suzhou Donghong Metal Materials Technology Co., Ltd., including company history, production resources, product range, technical services, and international supply experience.

3. General principles of metal roofing design, including substrate preparation, roof drainage, overlapping joints, flashing, fastener compatibility, thermal movement, and maintenance planning.

4. General architectural guidance for lightweight roof coverings used in steel-frame, timber, renovation, façade, curtain wall, and decorative building-envelope applications.

5. General material considerations for aluminum alloy, titanium-zinc alloy, and copper roofing systems in relation to weather exposure, surface durability, material compatibility, and long-term maintenance.

Product: 240 Model Fish-scale metal tiles
